Question: Q 1 . [ 6 0 pts ] All columns are braced at the beam level for out - of - plane motion. The interior

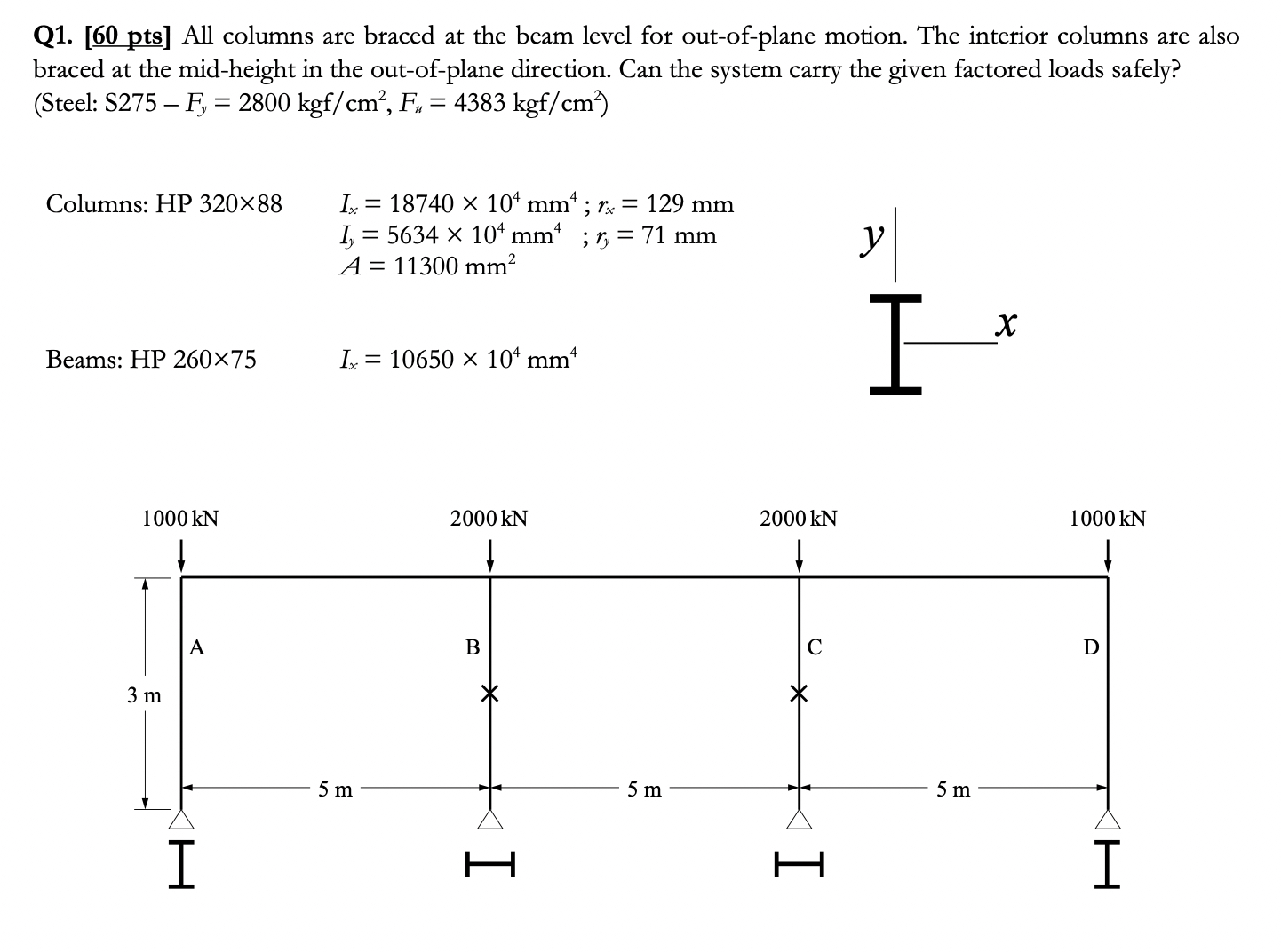

Q1.[60 pts] All columns are braced at the beam level for out-of-plane motion. The interior columns are also braced at the mid-height in the out-of-plane direction. Can the system carry the given factored loads safely? (Steel: S275-Fy=2800kgfcm2,Fu=4383kgfcm2)
Columns: HP 32088
Ix=18740104mm4;rx=129mm
Iy=5634104mm4;ry=71mm
A=11300mm2
Beams: HP 26075,Ix=10650104mm4
Q 1 . [ 6 0 pts ] All columns are braced at the
