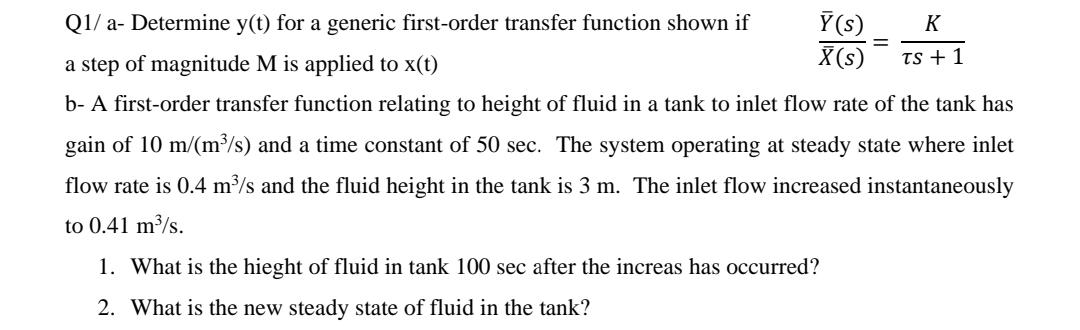

Question: Q 1 / a - Determine y ( t ) for a generic first - order transfer function shown if a step of magnitude M
Q a Determine for a generic firstorder transfer function shown if a step of magnitude is applied to
b A firstorder transfer function relating to height of fluid in a tank to inlet flow rate of the tank has gain of and a time constant of The system operating at steady state where inlet flow rate is and the fluid height in the tank is The inlet flow increased instantaneously to
What is the hieght of fluid in tank after the increas has occurred?
What is the new steady state of fluid in the tank?
