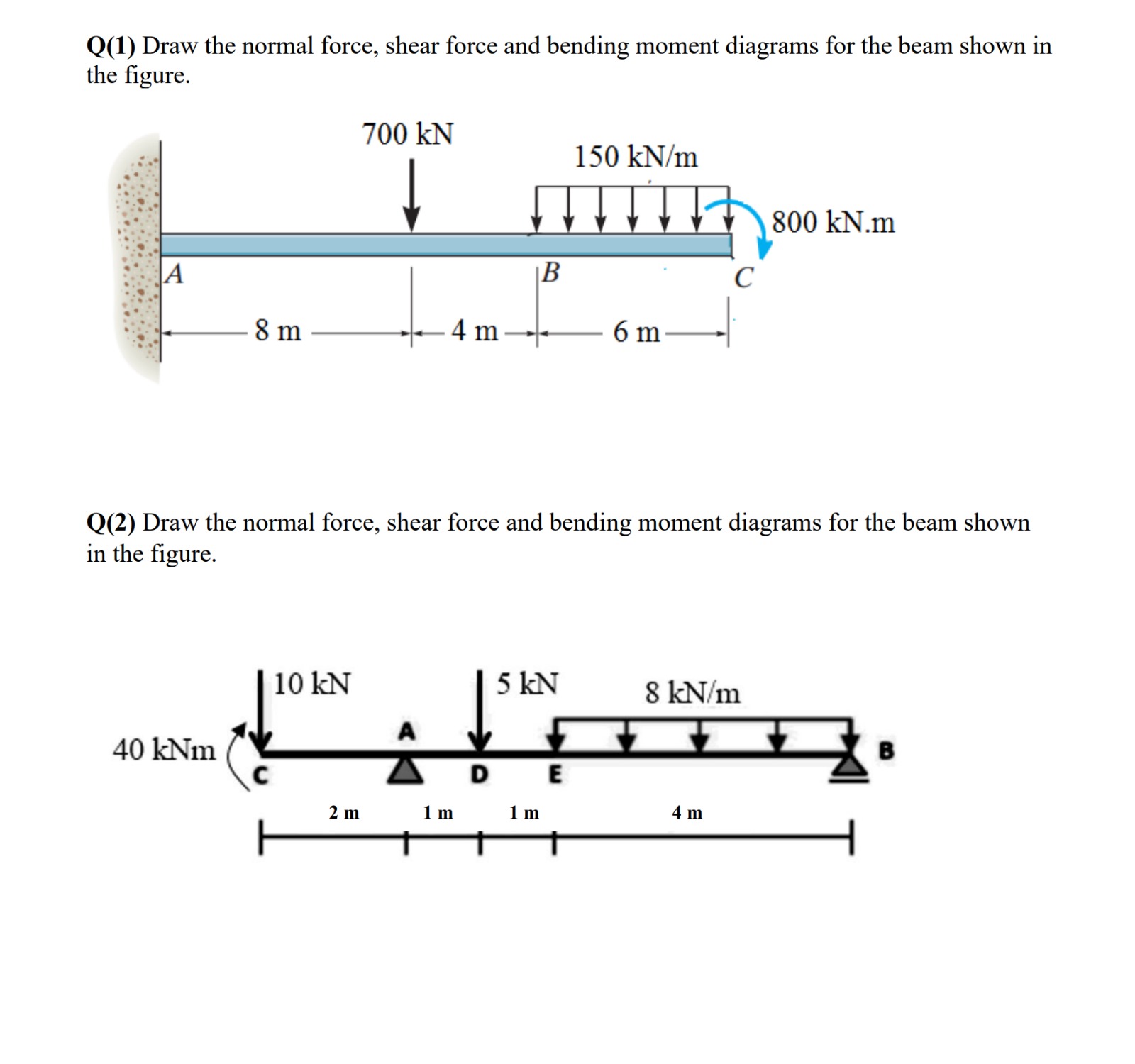

Question: Q ( 1 ) Draw the normal force, shear force and bending moment diagrams for the beam shown in the figure. Q ( 2 )

Q(1) Draw the normal force, shear force and bending moment diagrams for the beam shown in the figure.
Q(2) Draw the normal force, shear force and bending moment diagrams for the beam shown in the figure.
Q ( 1 ) Draw the normal force, shear force and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
