Question: Q 1 . To be solved using the double integration method. The bar is supported by a roller constraint at B , which allows vertical

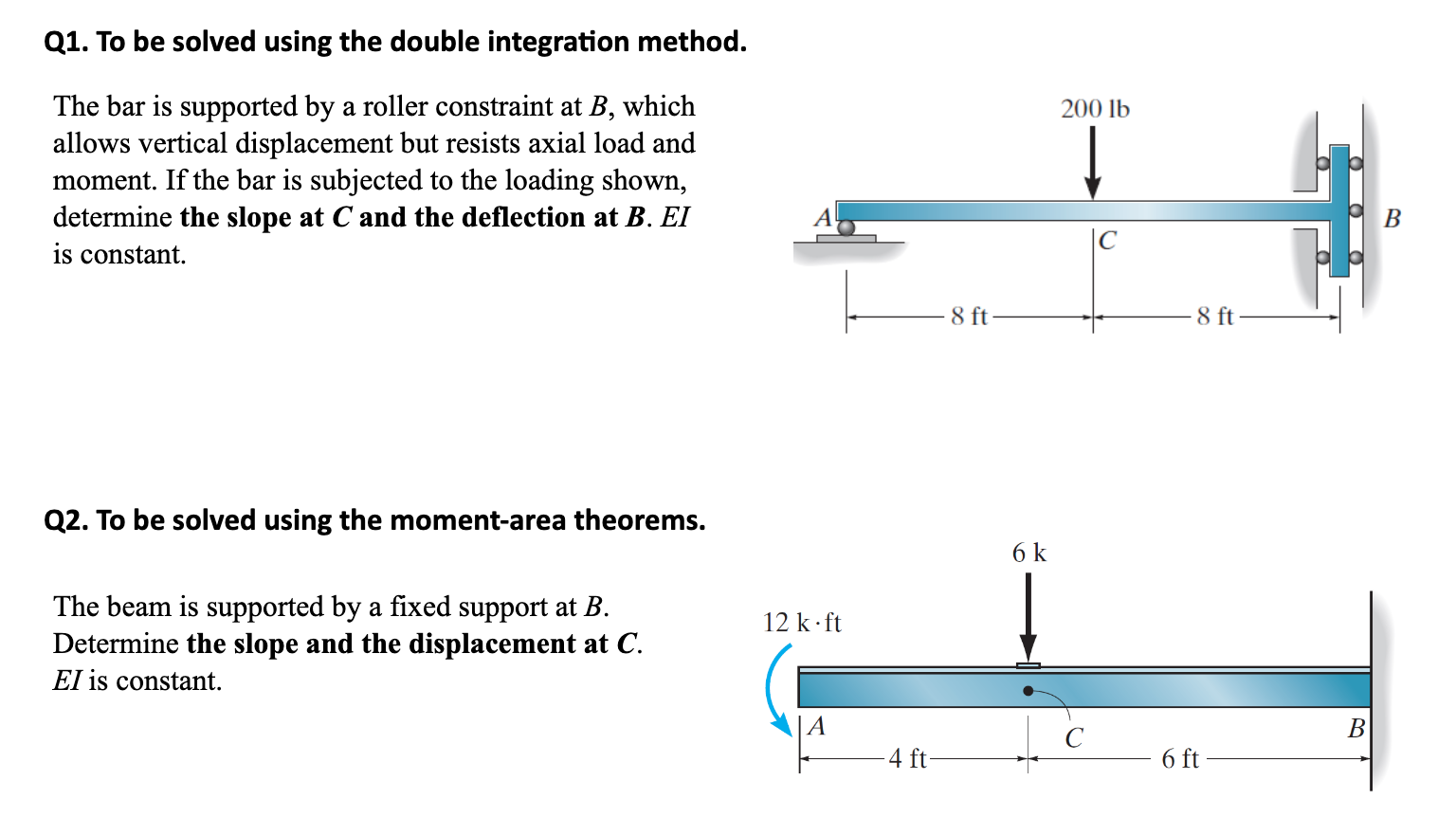

Q1. To be solved using the double integration method.
The bar is supported by a roller constraint at B, which
allows vertical displacement but resists axial load and
moment. If the bar is subjected to the loading shown,
determine the slope at C and the deflection at B.EI
is constant.
Q2. To be solved using the moment-area theorems.
The beam is supported by a fixed support at B.
Determine the slope and the displacement at C.
EI is constant.
Q 1 . To be solved using the double integration

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
