Question: Q . 2 ) ( 2 5 p ) Water flows through the pipeline system shown in the figure below. The z - component of

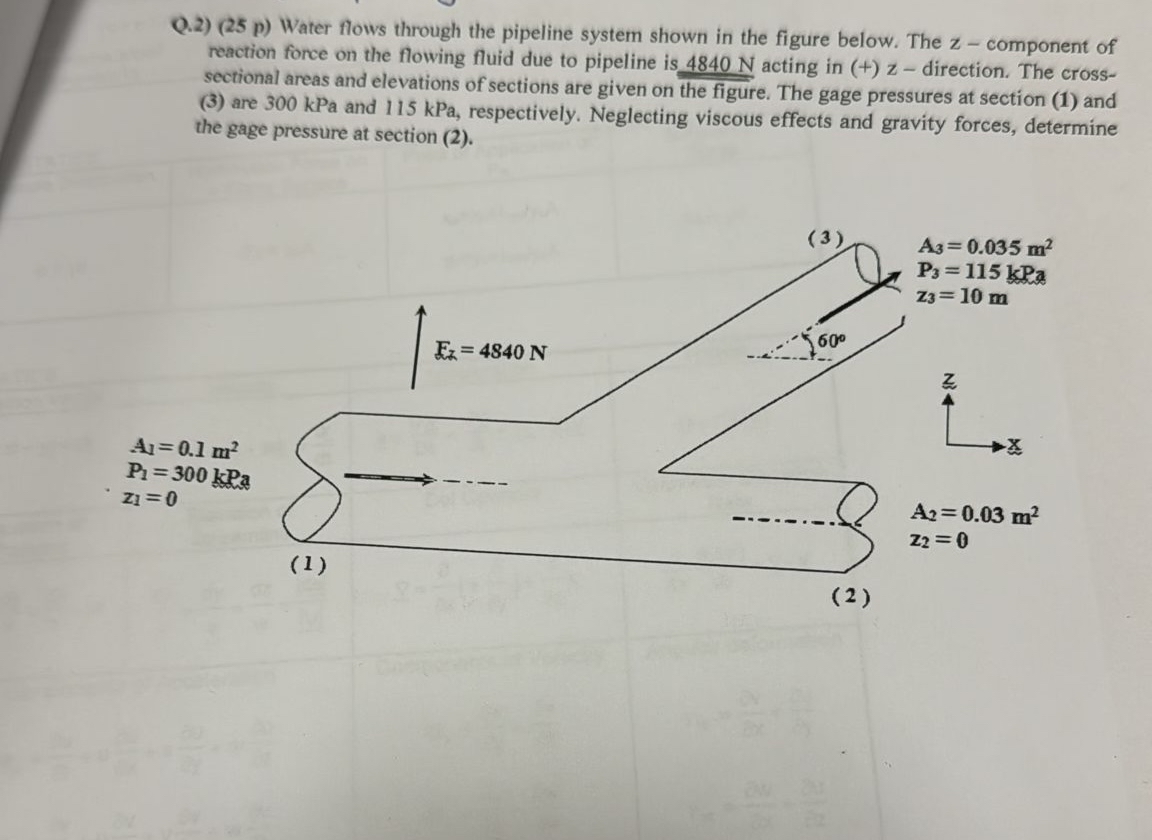

Q.2)(25 p) Water flows through the pipeline system shown in the figure below. The z-component of reaction force on the flowing fluid due to pipeline is 4840N acting in (+)z-direction. The crosssectional areas and elevations of sections are given on the figure. The gage pressures at section (1) and (3) are 300kPa and 115kPa, respectively. Neglecting viscous effects and gravity forces, determine the gage pressure at section (2).
Q . 2 ) ( 2 5 p ) Water flows through the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
