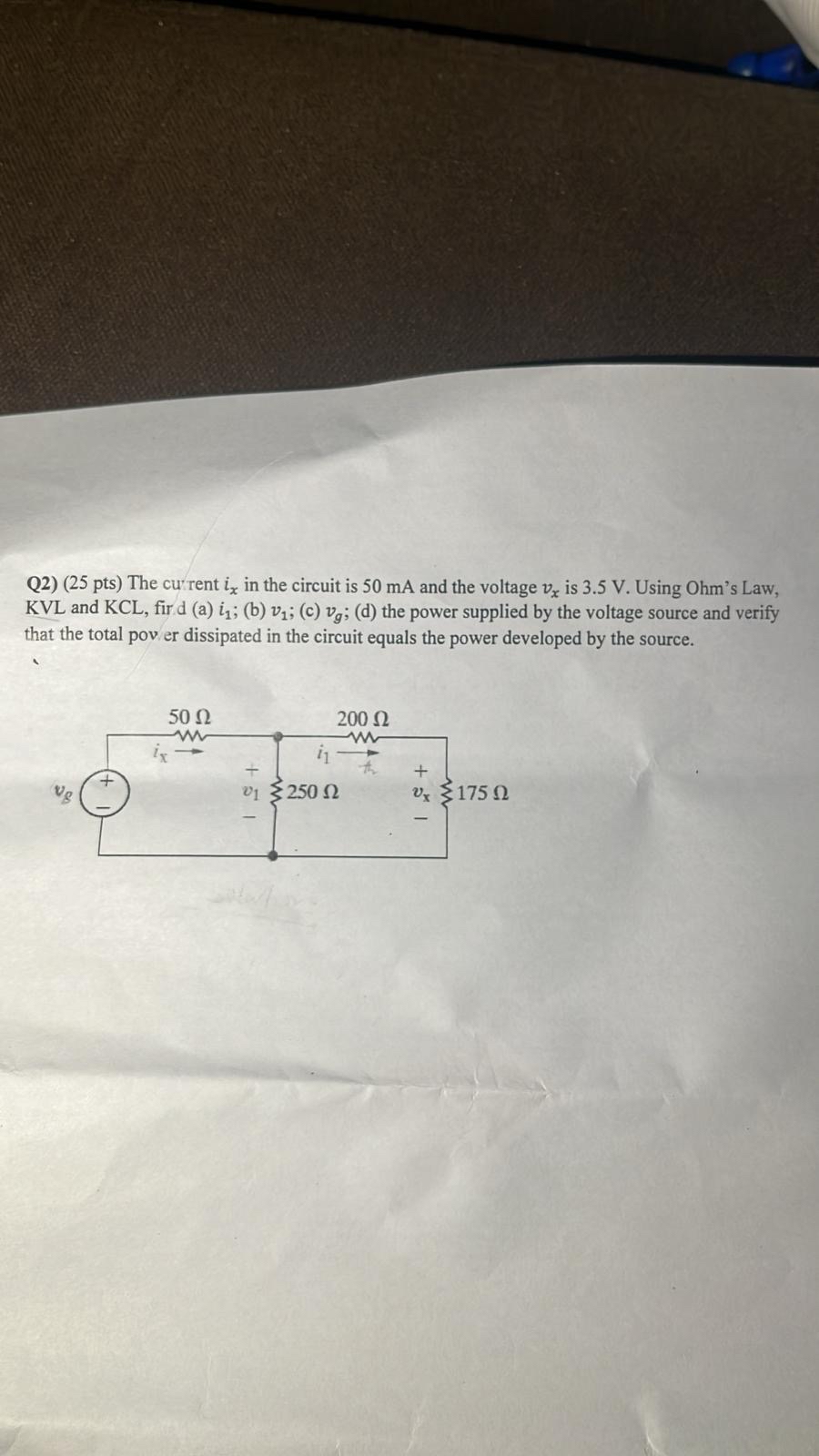

Question: Q 2 ) ( 2 5 pts ) The current i x in the circuit is 5 0 mA and the voltage v x is

2) (25

pts

)

The current

i_{x}

in the circuit is

50

mA and the voltage

v_{x}

3.5

.

Using Ohm's Law, KVL and KCL

,

find

(

) i_{1}

;

(

) v_{1}

;

(

) v_{g}

;

(

)

the power supplied by the voltage source and verify that the total power dissipated in the circuit equals the power developed by the source. Please explain to me in detail

Q 2 ) ( 2 5 pts ) The current i x in the circuit

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
