Question: Q 2 . A bipolar junction transistor ( BJT ) amplifier circuit as in Figure below has the following specifications: = 1 4 0 ,

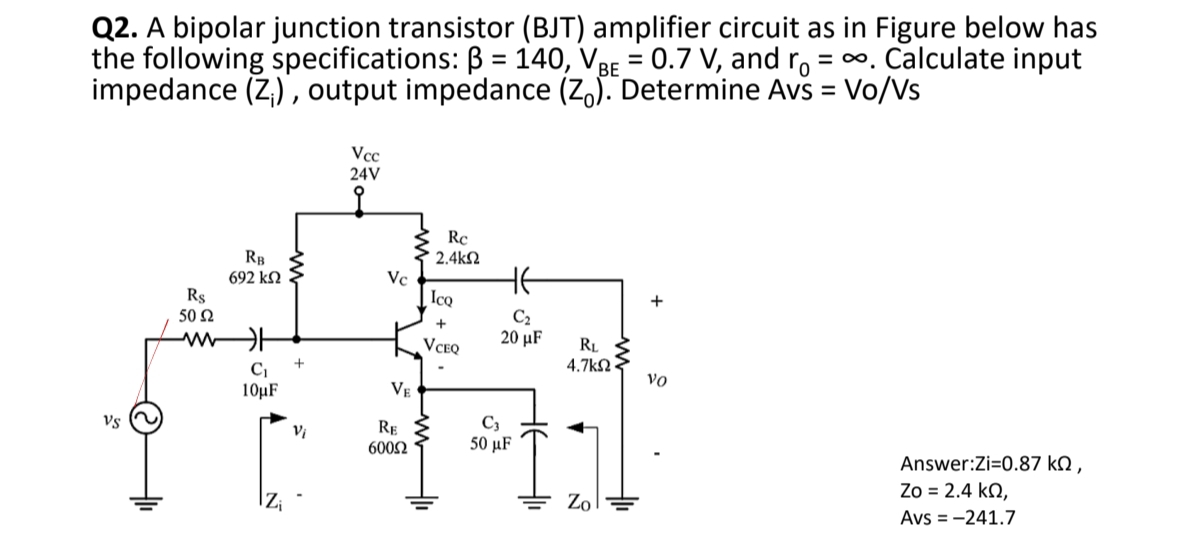

Q2. A bipolar junction transistor (BJT) amplifier circuit as in Figure below has the following specifications: =140,VBE=0.7V, and r0=. Calculate input impedance (Zi), output impedance (Z0). Determine Avs =VoVs
Answer:Zi=0.87k,
Zo=2.4k,
Avs =-241.7
Q 2 . A bipolar junction transistor ( BJT )

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
