Question: Q 2 ) In the liquid - level system shown below, the tanks 1 and 2 are connected to each other, have liquid heights of

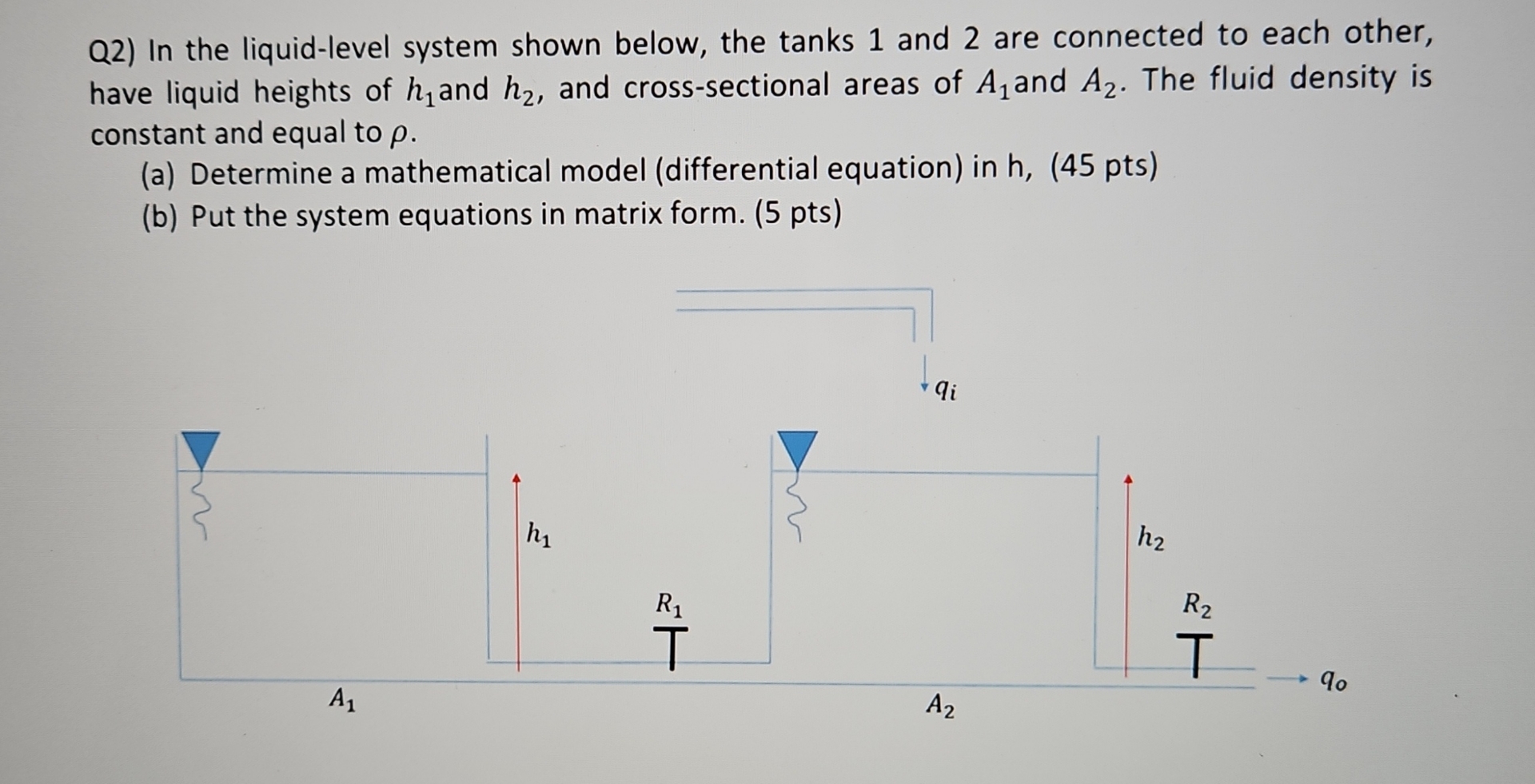

Q2) In the liquid-level system shown below, the tanks 1 and 2 are connected to each other, have liquid heights of h1 and h2, and cross-sectional areas of A1 and A2. The fluid density is constant and equal to .
(a) Determine a mathematical model (differential equation) in h,
(b) Put the system equations in matrix form.
Q 2 ) In the liquid - level system shown below,
