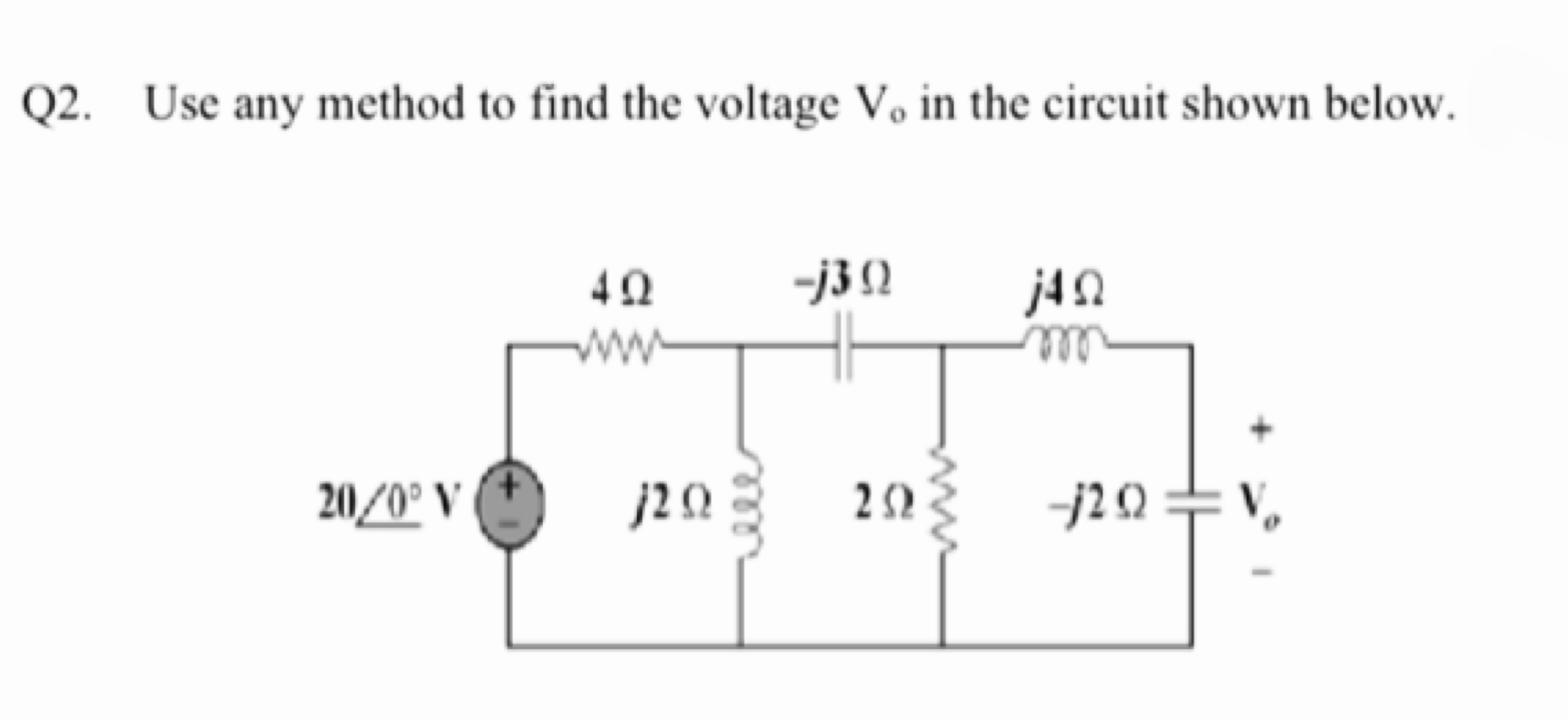

Question: Q 2 . Use any method to find the voltage V o in the circuit shown below.

Q2. Use any method to find the voltage Vo in the circuit shown below.
Q 2 . Use any method to find the voltage V o in

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
