Question: Q 3 : ( 1 3 Marks ) The velocity in AB for the air distribution system shown in the figure is limited to 4

Q3: (13 Marks)

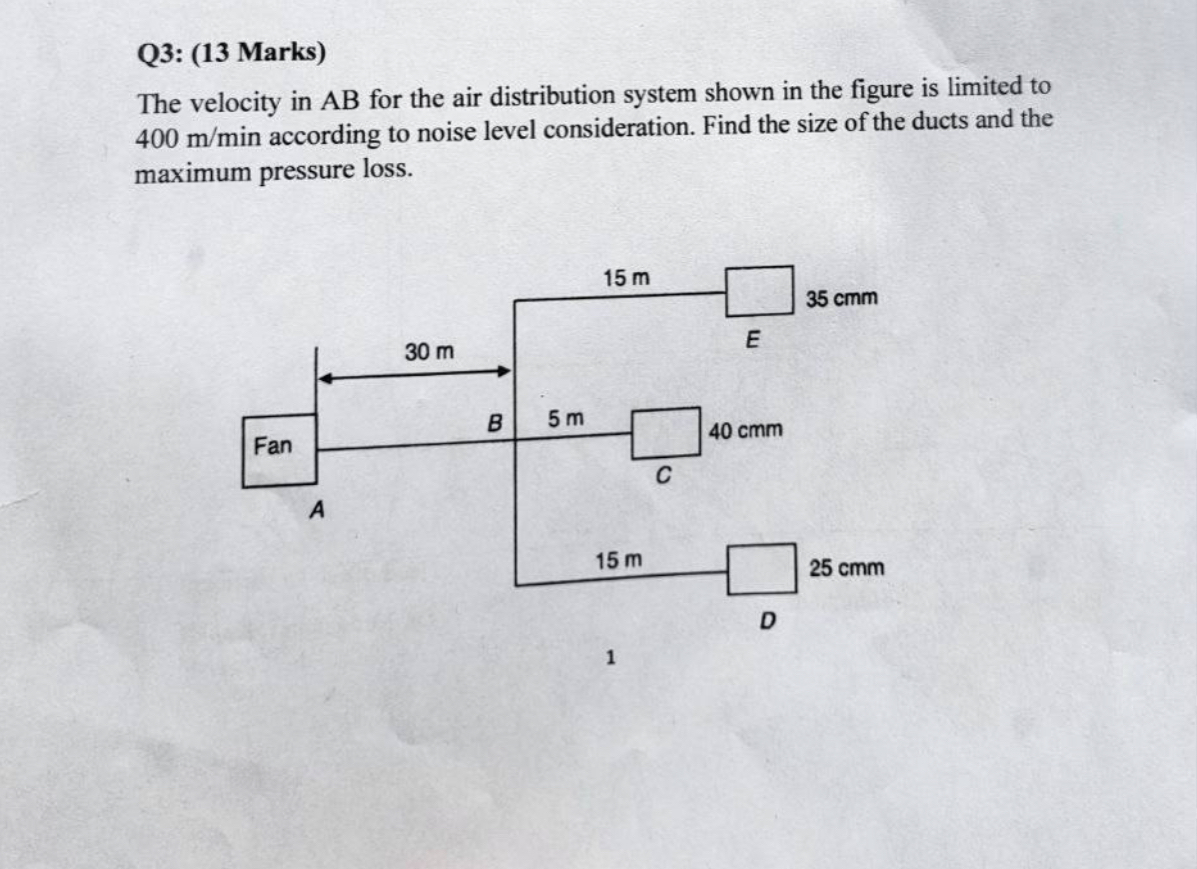

The velocity in AB for the air distribution system shown in the figure is limited to 400mmin according to noise level consideration. Find the size of the ducts and the maximum pressure loss.
Q 3 : ( 1 3 Marks ) The velocity in AB for the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
