Question: Q # 3 Consider the MPLS network shown below, and suppose that routers R5 and R6 are now MPLS enabled. Suppose that we want to

Q # 3 Consider the MPLS network shown below, and suppose

that routers R5 and R6 are now MPLS enabled. Suppose that we

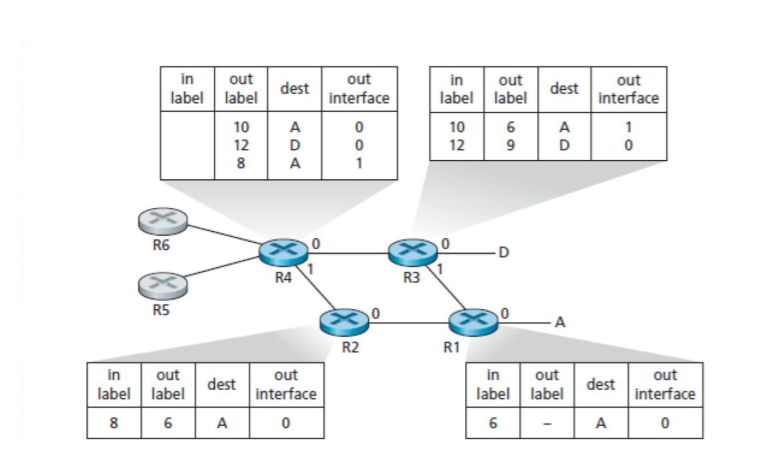

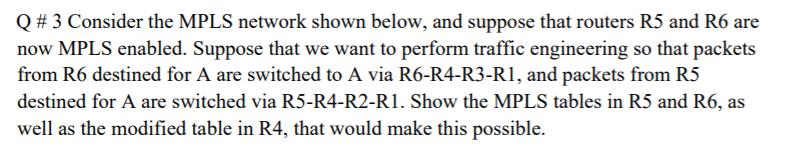

Q # 3 Consider the MPLS network shown below, and suppose that routers R5 and R6 are now MPLS enabled. Suppose that we want to perform traffic engineering so that packets from R6 destined for A are switched to A via R6-R4-R3-R1, and packets from R5 destined for A are switched via R5-R4-R2-R1. Show the MPLS tables in R5 and R6, as well as the modified table in R4, that would make this possible

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

Consider the MPLS network shown in Figure 5.36, and suppose that routers R5 and R6 are now MPLS enabled. Suppose that we want to perform traffic engineering so that packets from R6 destined for A are...

Considering the MPLS network shown below. Assume that routers R_5 and R_6 are now MPLS enabled. Suppose that we want to perform traffic engineering so that packets from R_6 destined for A are...

Consider a network with MPLS enabled routers as shown in Figure 1 below. We would like to perform traffic engineering using MPLS so that traffic from R1 to R6 will be routed as R1->R3-R5->R6->A and...

In MPLS, a packet is forwarded to outgoing interface based only on label value and not on IP address. In Fig. 1 initially R1-R4 are MPLS router and R5-R6 are not an MPLS router. R1 is the rst router...

Consider the following MPLS network with four MPLS-enabled routers R1 to R4. Suppose that R5 and R6 are now MPLS enabled. We want to perform traffic engineering so packets from R6 destined for A are...
