Question: Q . 3 Two forces are applied on a pole as shown in figure. 1 - Determine the magnitude of resultant force. 2 - Determine

Q.3

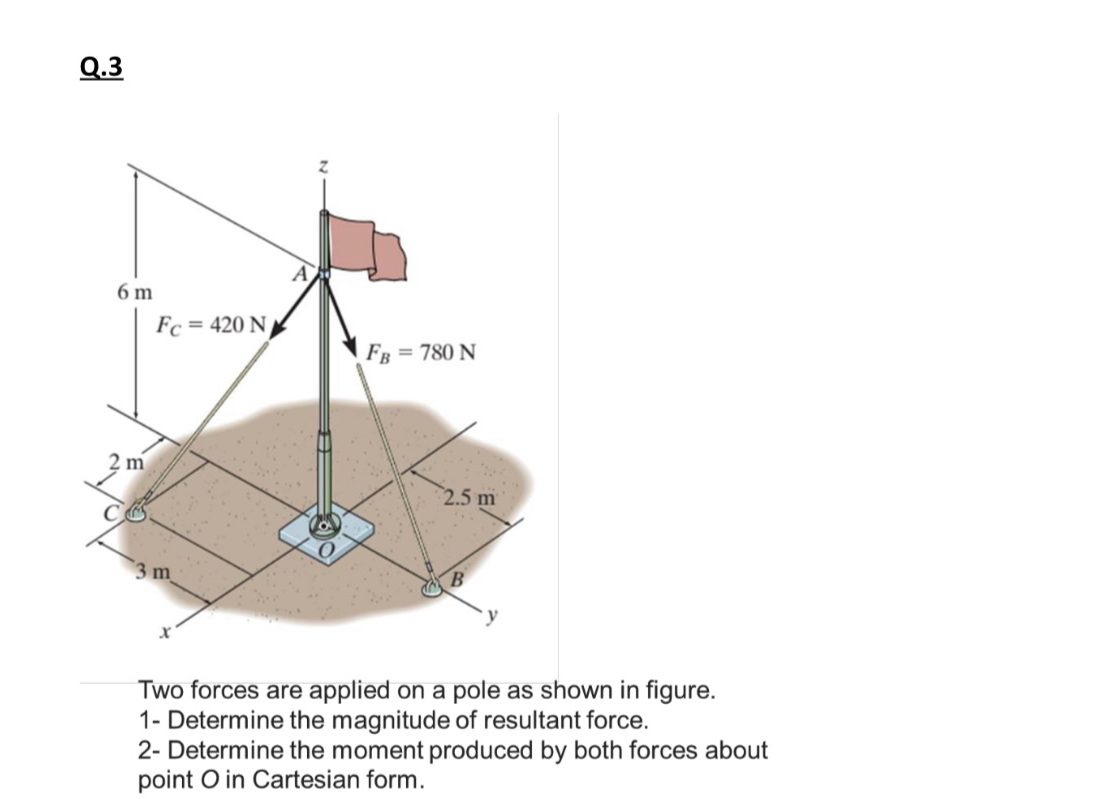

Two forces are applied on a pole as shown in figure.
1- Determine the magnitude of resultant force.
2- Determine the moment produced by both forces about point O in Cartesian form.
Q . 3 Two forces are applied on a pole as shown

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
