Question: Q 4 ) For the beam under uniform distributed load shown below, determine the reaction at point A , B and C . ( E

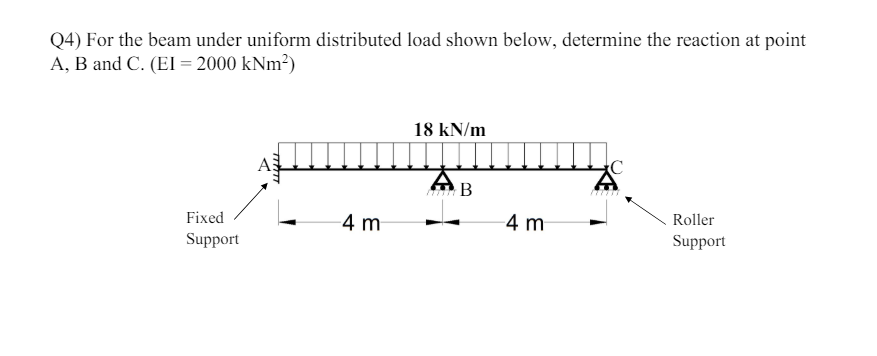

Q4) For the beam under uniform distributed load shown below, determine the reaction at point
A, B and C.(EI=2000kNm2)
Q 4 ) For the beam under uniform distributed load

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
