Question: Q 4 ) The supports B and C settle down by 8 mm and 4 mm , respectively. Determine the moments acting at the ends

4)

The supports B and C settle down by

8

mm and

4

,

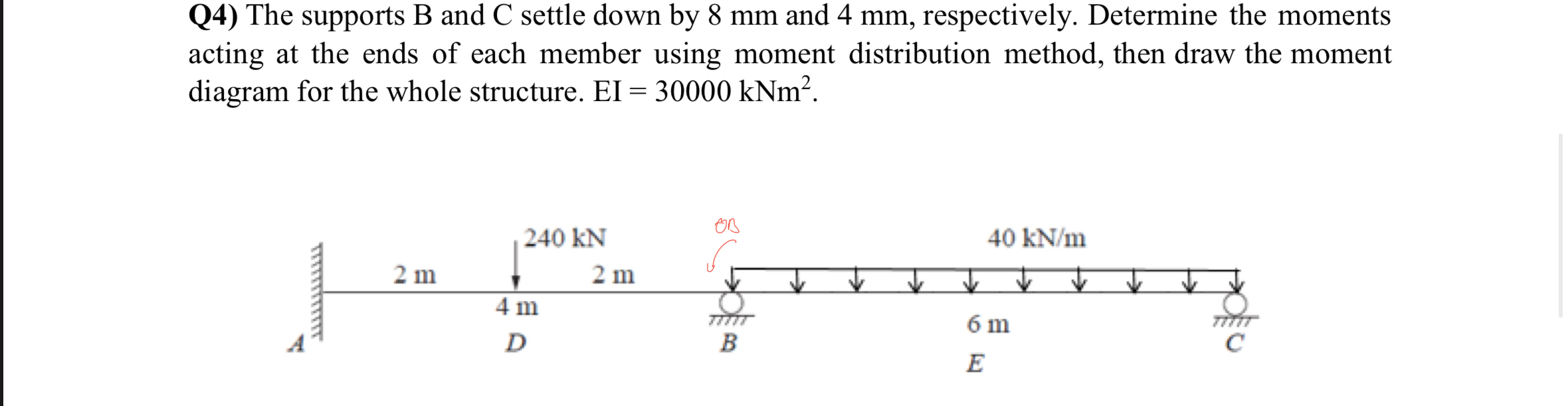

respectively. Determine the moments acting at the ends of each member using moment distribution method, then draw the moment diagram for the whole structure.

E I = 30000 k N m^{2} .

Q 4 ) The supports B and C settle down by 8 mm

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
