Question: Q 5 . ) A 4 5 lb . block A Yests on a 3 0 lb . block B as shown. The coefficient of

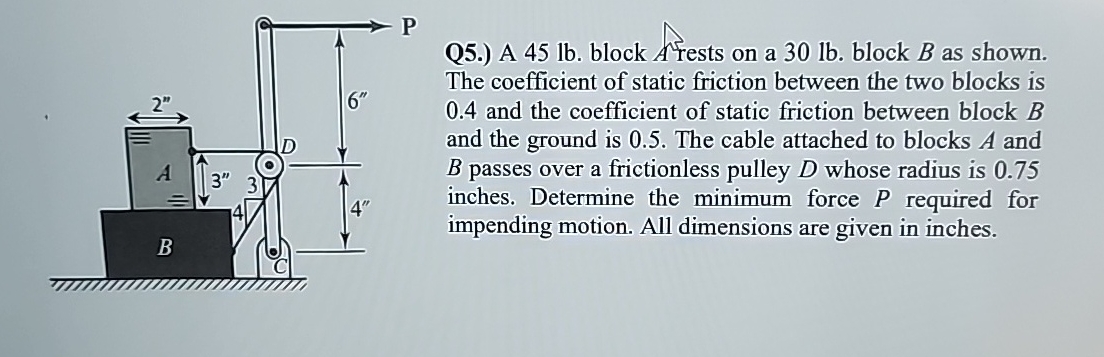

Q5.) A 45 lb . block A Yests on a 30 lb . block B as shown. The coefficient of static friction between the two blocks is 0.4 and the coefficient of static friction between block B and the ground is 0.5. The cable attached to blocks A and B passes over a frictionless pulley D whose radius is 0.75 inches. Determine the minimum force P required for impending motion. All dimensions are given in inches.
Q 5 . ) A 4 5 lb . block A Yests on a 3 0 lb .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
