Question: Q 6 . Evaluate the diameter of a solid circular shaft to transmit 5 0 kW power rotating at 1 2 0 rpm . Maximum

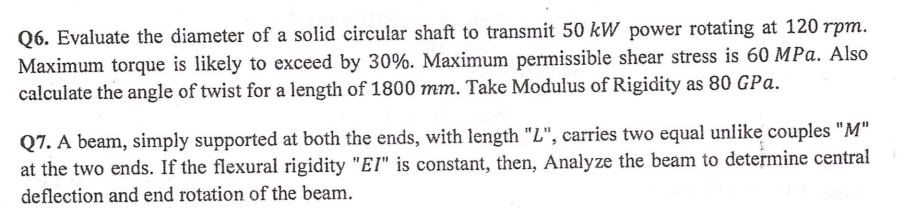

Q6. Evaluate the diameter of a solid circular shaft to transmit 50 kW power rotating at 120 rpm . Maximum torque is likely to exceed by 30%. Maximum permissible shear stress is 60 MPa . Also calculate the angle of twist for a length of 1800 mm . Take Modulus of Rigidity as 80 GPa .
Q7. A beam, simply supported at both the ends, with length "L", carries two equal unlike couples "M" at the two ends. If the flexural rigidity "EI" is constant, then, Analyze the beam to determine central deflection and end rotation of the beam.
