Q) A.

Consider the following event log. Write the corresponding workflow log using the same approach as in Figure 11.7. You may use abbreviations for the four tasks in this process. Case ID Task Label Timestamp 1 Receive order 10-09-2022 07:00:00 2 Receive order 10-09-2022 08:00:00 1 Create invoice 10-09-2022 08:05:00 2 Create invoice 10-09-2022 08:07:00 3 Receive order 11-09-2022 09:30:00 3 Create invoice 11-09-2022 15:00:00 4 Receive order 12-09-2022 09:00:00 4 Create invoice 12-09-2022 09:15:00 1 Receive payment 15-09-2022 07:30:00 1 Archive order 15-09-2022 07:45:00 2 Apply late penalty 08-10-2022 10:00:00 3 Apply late penalty 09-10-2022 11:00:00 2 Receive payment 11-10-2022 14:35:00 2 Archive order 11-10-2022 14:37:00 4 Apply late penalty 10-10-2022 08:10:00 4 Issue final warning 10-10-2022 16:00:00 4 Receive payment 15-10-2022 07:30:00 4 Archive order 15-10-2022 07:35:00 3 Apply late penalty 02-11-2022 09:00:00 3 Issue final warning 02-12-2022 09:00:00 3 Receive payment 05-12-2022 15:00:00 3 Archive order 05-12-2022 15:03:00

Q) B.

Draw the dependency graph of the workflow log from the above exercise(QA) Do this by hand, you should not use or need a process mining tool for this.

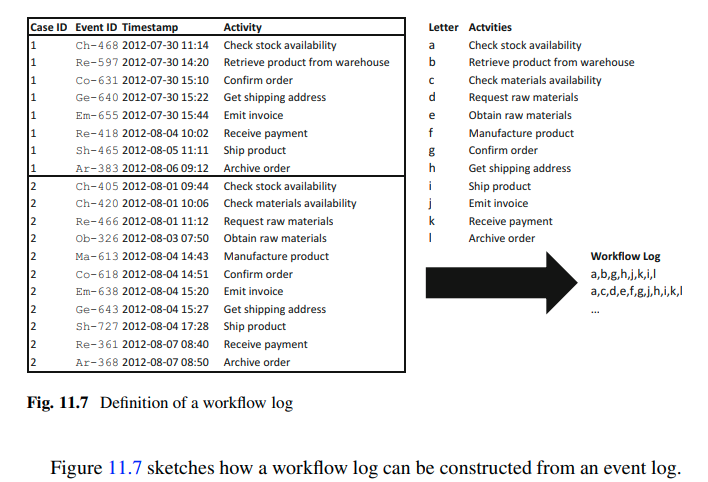

Fig. 11.7 Definition of a workflow log Figure 11.7 sketches how a workflow log can be constructed from an event log
