Question: Q1. (5 marks) Determine the maximum allowed force P (kN) that can be applied to the bar shown below. The bar is made of Stainless

Q1. (5 marks) Determine the maximum allowed force P (kN) that

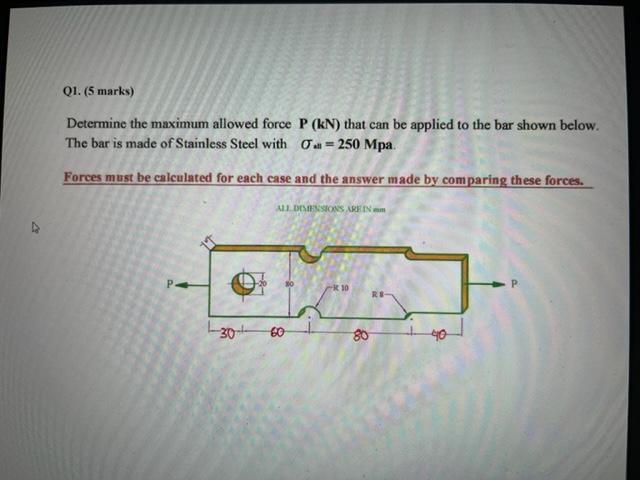

Q1. (5 marks) Determine the maximum allowed force P (kN) that can be applied to the bar shown below. The bar is made of Stainless Steel with a = 250 Mpa. Forces must be calculated for each case and the answer made by comparing these forces. ALL DESSIONS ARRIN P PR 30 -30 60 80 40

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
