Question: Q2: The below table defines the activities within a small project. (1) Draw the network diagram, (ii) Calculate the minimum overall project completion time and

Q2: The below table defines the activities within

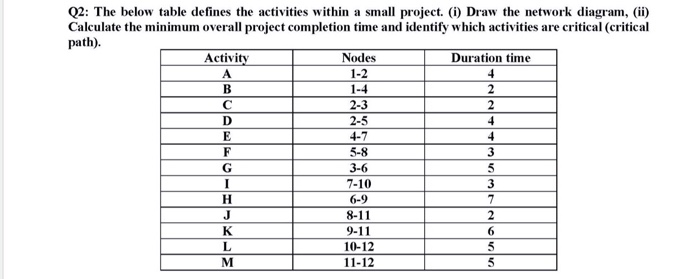

Q2: The below table defines the activities within a small project. (1) Draw the network diagram, (ii) Calculate the minimum overall project completion time and identify which activities are critical critical path). Activity Nodes Duration time A 1-2 4 B 1-4 2 2-3 2 D 2-5 4 E 4-7 4 F 5-8 3 G 3-6 5 I 7-10 3 H 6-9 7 J 8-11 2 K 9-11 6 L 10-12 5 M 11-12 5

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
