Q3 (30 marks) Consider a uniform rectangular beam subjected to 4-point bending. Load at each support...
Fantastic news! We've Found the answer you've been seeking!
Question:
Transcribed Image Text:

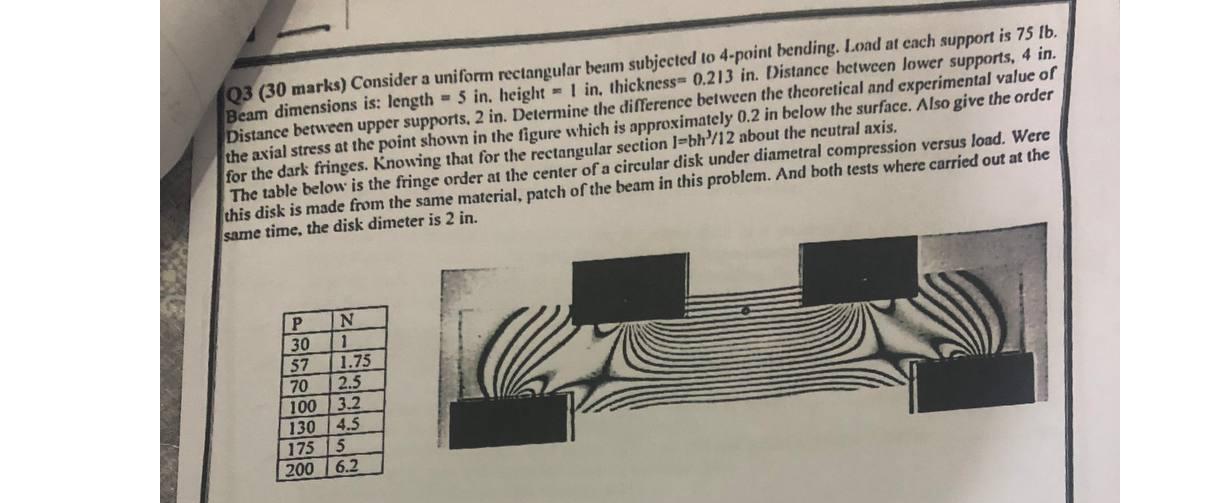

Q3 (30 marks) Consider a uniform rectangular beam subjected to 4-point bending. Load at each support is 75 lb. = 5 in. height = 1 in, thickness 0.213 in. Distance between lower supports, 4 in. Beam dimensions is: length Distance between upper supports, 2 in. Determine the difference between the theoretical and experimental value of the axial stress at the point shown in the figure which is approximately 0.2 in below the surface. Also give the order for the dark fringes. Knowing that for the rectangular section 1-bh'/12 about the neutral axis. The table below is the fringe order at the center of a circular disk under diametral compression versus load. Were this disk is made from the same material, patch of the beam in this problem. And both tests where carried out at the same time, the disk dimeter is 2 in. P N 30 1 57 1.75 70 2.5 100 3.2 130 4.5 175 5 200 6.2 Q3 (30 marks) Consider a uniform rectangular beam subjected to 4-point bending. Load at each support is 75 lb. = 5 in. height = 1 in, thickness 0.213 in. Distance between lower supports, 4 in. Beam dimensions is: length Distance between upper supports, 2 in. Determine the difference between the theoretical and experimental value of the axial stress at the point shown in the figure which is approximately 0.2 in below the surface. Also give the order for the dark fringes. Knowing that for the rectangular section 1-bh'/12 about the neutral axis. The table below is the fringe order at the center of a circular disk under diametral compression versus load. Were this disk is made from the same material, patch of the beam in this problem. And both tests where carried out at the same time, the disk dimeter is 2 in. P N 30 1 57 1.75 70 2.5 100 3.2 130 4.5 175 5 200 6.2
Expert Answer:
Posted Date:
