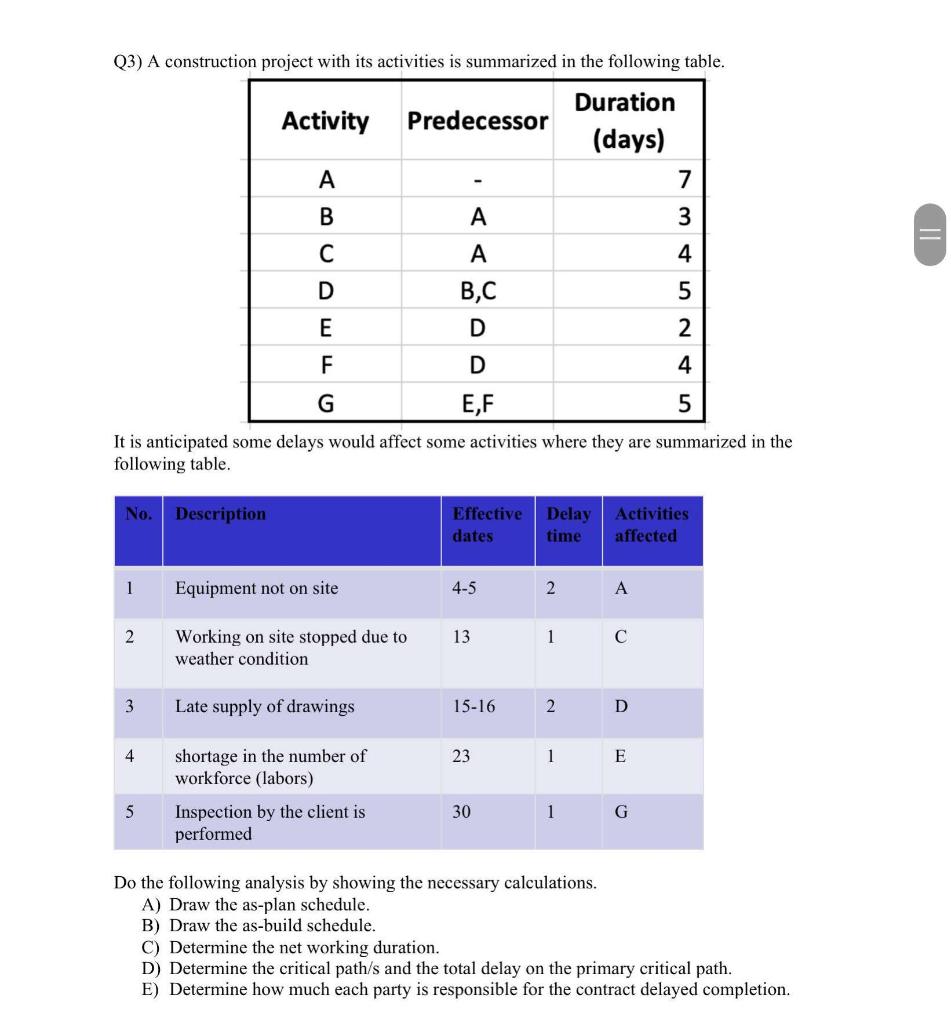

Q3) A construction project with its activities is summarized in the following table. Duration Activity Predecessor (days) A B A C A D B,C E D F D 4 G E,F 5 It is anticipated some delays would affect some activities where they are summarized in the following table. No. Description Effective Delay time Activities affected dates 1 Equipment not on site. 4-5 2 A 2 13 1 C Working on site stopped due to weather condition 3 Late supply of drawings 15-16 2 D 4 23 1 E shortage in the number of workforce (labors) 5 30 1 G Inspection by the client is performed Do the following analysis by showing the necessary calculations. A) Draw the as-plan schedule. B) Draw the as-build schedule. C) Determine the net working duration. D) Determine the critical path/s and the total delay on the primary critical path. E) Determine how much each party is responsible for the contract delayed completion. 7 3 34 4 5 24 2
