Question: Q3 A Foundation Fieldbus system is connected by Type B cable (0.1 per metre) in accordance with the following drawing. (a) Determine the voltage at

Q3 A Foundation Fieldbus system is connected by Type B cable

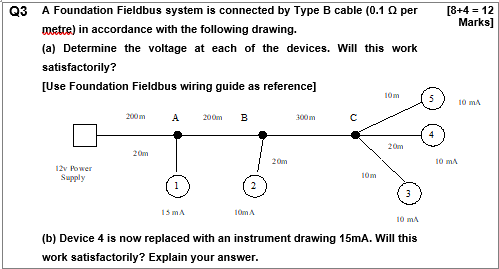

Q3 A Foundation Fieldbus system is connected by Type B cable (0.1 per metre) in accordance with the following drawing. (a) Determine the voltage at each of the devices. Will this work satisfactorily? [Use Foundation Fieldbus wiring guide as reference] [8+4= 12 Marks] 10m 10 mA 200m A 200B 00m 20m 20m 20mm 10 mA 12v Howe Supply 10m 15 mA 10 mA (b) Device 4 is now replaced with an instrument drawing 15mA. Will this work satisfactorily? Explain your

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
