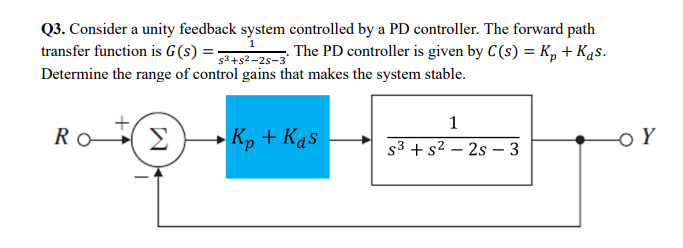

Question: Q3. Consider a unity feedback system controlled by a PD controller. The forward path 1 transfer function is G(s) = : The PD controller

Q3. Consider a unity feedback system controlled by a PD controller. The forward path 1 transfer function is G(s) = : The PD controller is given by C(s) = Kp + Ks. $3+52-25-3 Determine the range of control gains that makes the system stable. 1 Ro Kp + Kas OY s3s2 2s 3 -

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
