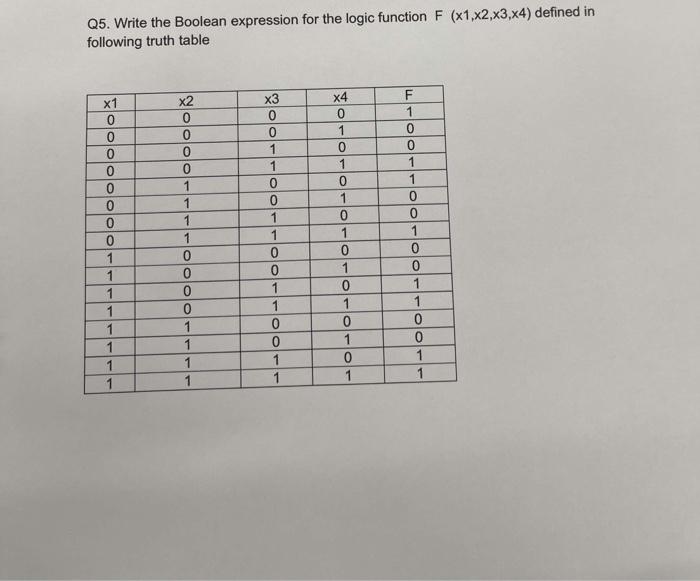

Question: Q5. Write the Boolean expression for the logic function F(x1,x2,3,x4) defined in following truth table

Q5. Write the Boolean expression for the logic function F(x1,x2,3,x4) defined

Q5. Write the Boolean expression for the logic function F(x1,x2,3,x4) defined in following truth table

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

Q:

Write rhe boolean expression from the logic function F (x1,x2,x3,x4) defined in the following truth table Q5. Write the Boolean expression for the logic function F(1,2,3,x4) defined in following...

Q:

Q1. Using Boolean algebraic properties, minimize the Boolean expression X+Y(Z+X+Z) to two literals Q2. Write the truth table for F=ABC+AC+AB and draw the logic circuit Q3. Write the Boolean equation...
