Question: Q.No.02. Draw the Node Network for the following data. Find Critical Path, Total Float, Free Float, and Interfering Float. (25 Marks) Activity IPA Duration Lag

Q.No.02. Draw the Node Network for the following

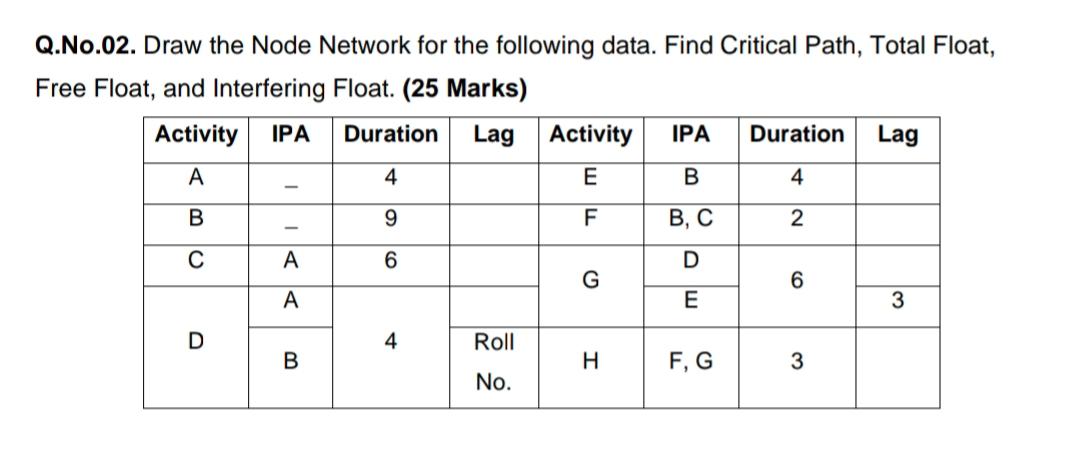

Q.No.02. Draw the Node Network for the following data. Find Critical Path, Total Float, Free Float, and Interfering Float. (25 Marks) Activity IPA Duration Lag Activity IPA Duration Lag A 4 E B 4 B 9 F B, C 2 A 6 D G 6 A E 3 D 4 Roll B H F, G 3 No

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
