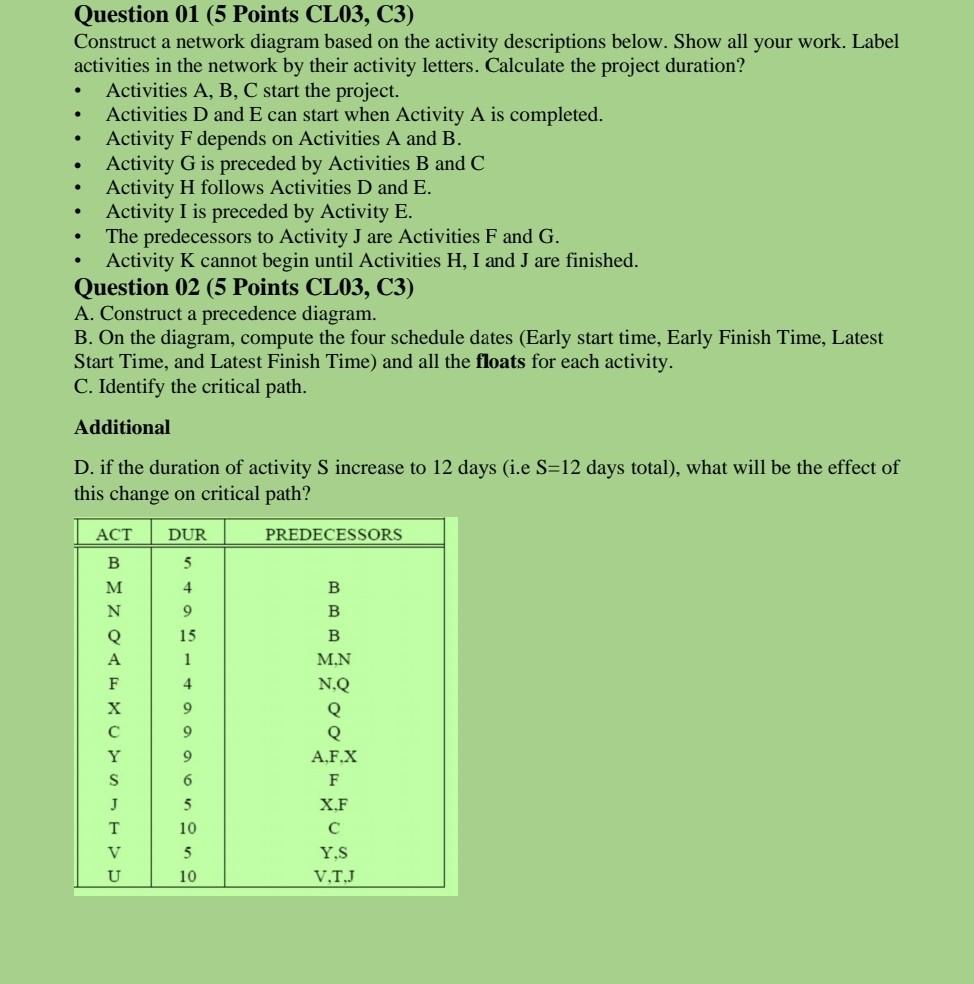

. . . Question 01 (5 Points CLO3, C3) Construct a network diagram based on the activity descriptions below. Show all your work. Label activities in the network by their activity letters. Calculate the project duration? Activities A, B, C start the project. Activities D and E can start when Activity A is completed. Activity F depends on Activities A and B. Activity G is preceded by Activities B and C Activity H follows Activities D and E. Activity I is preceded by Activity E. The predecessors to Activity J are Activities F and G. Activity K cannot begin until Activities H, I and J are finished. Question 02 (5 Points CLO3, C3) A. Construct a precedence diagram. B. On the diagram, compute the four schedule dates (Early start time, Early Finish Time, Latest Start Time, and Latest Finish Time) and all the floats for each activity. C. Identify the critical path. . . Additional D. if the duration of activity S increase to 12 days (i.e S=12 days total), what will be the effect of this change on critical path? DUR PREDECESSORS ACT B M N Q 5 4 9 B 15 1 4 9 9 9 B B M.N N.Q Q Q A.F.X F 6 X.F T C 5 10 5 10 Y.S V U V.T.J
