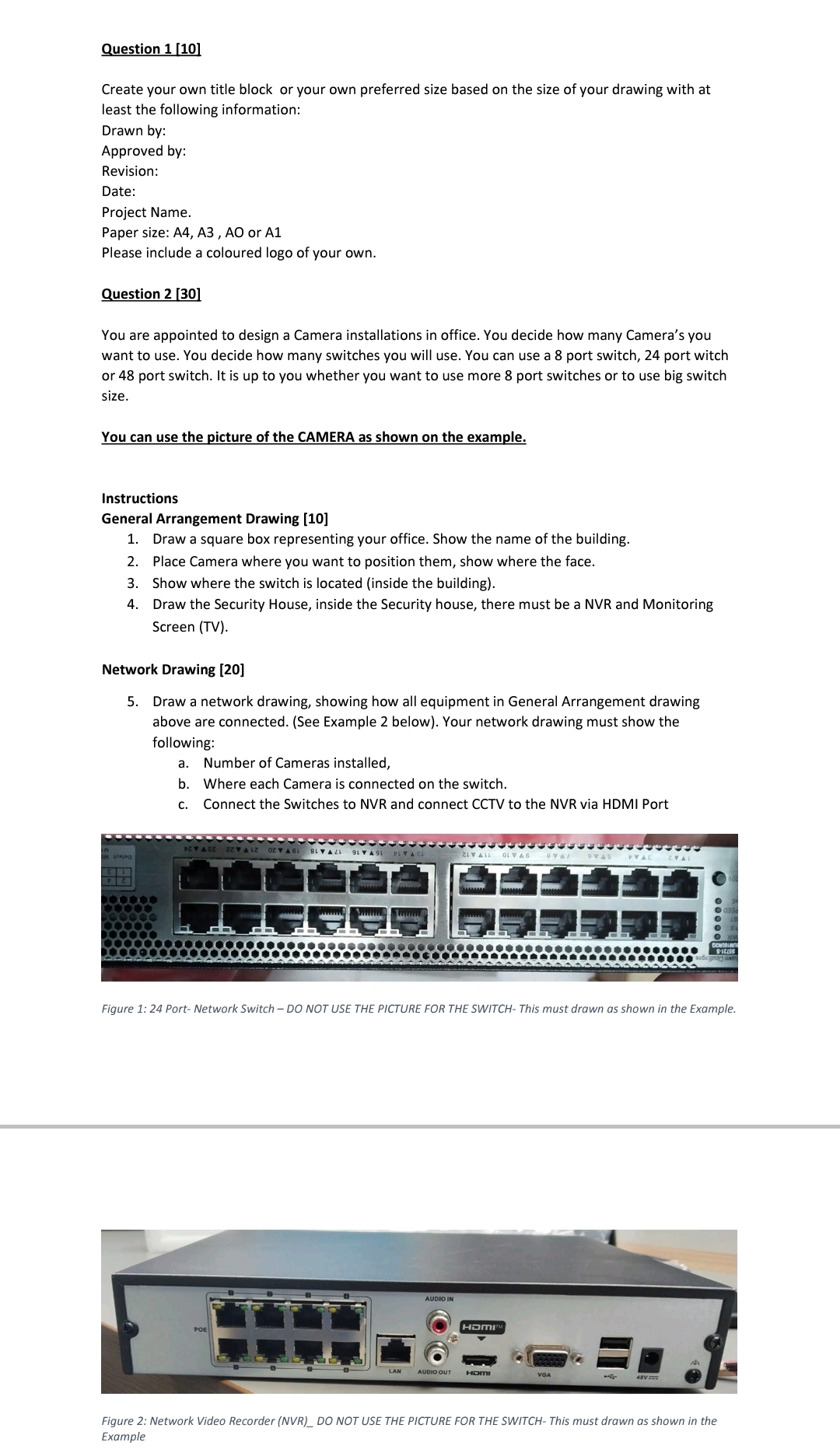

Question $1[10]$

Create your own title block or your own preferred size based on the size of your drawing with at

least the following information:

Drawn by:

Approved by:

Revision:

Date:

Project Name.

Paper size: A$4,$ A$3,$ AO or A$1$

Please include a coloured logo of your own.

Question $2[30]$

You are appointed to design a Camera installations in office. You decide how many Camera's you

want to use. You decide how many switches you will use. You can use a $8$ port switch, $24$ port witch

or $48$ port switch. It is up to you whether you want to use more $8$ port switches or to use big switch

size.

You can use the picture of the CAMERA as shown on the example.

Instructions

General Arrangement Drawing $[10]$

Draw a square box representing your office. Show the name of the building.

Place Camera where you want to position them, show where the face.

Show where the switch is located $($inside the building$).$

Draw the Security House, inside the Security house, there must be a NVR and Monitoring

Screen $($TV$).$

Network Drawing $[20]$

Draw a network drawing, showing how all equipment in General Arrangement drawing

above are connected. $($See Example $2$ below$).$ Your network drawing must show the

following:

a$.$ Number of Cameras installed,

b$.$ Where each Camera is connected on the switch.

c$.$ Connect the Switches to NVR and connect CCTV to the NVR via HDMI Port

Figure $1$: $24$ Port$-$ Network Switch $-$ DO NOT USE THE PICTURE FOR THE SWITCH$-$ This must drawn as shown in the Example.
