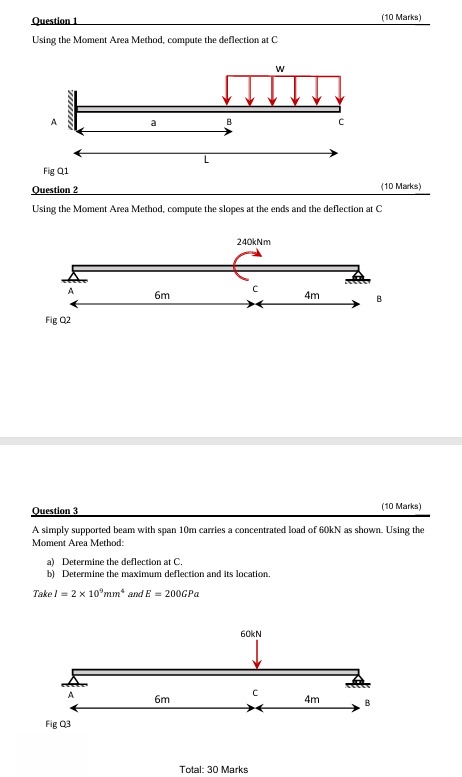

Question $1$

$(10$ Marks$)$

Using the Moment Area Method, compute the deflection at C$.$ Draw the moment$/$EI diagram and elastic curve diagram to help solve the question.

Question $2$

$(10$ Marks$)$

Using the Moment Area Method, compute the slopes at the ends and the deflection at C$.$ draw the M$/$EL diagram and elastic curve

Question $3$

$(10$ Marks$)$

A simply supported beam with span $10$ m carries a concentrated load of $60$ kN as shown. Using the Moment Area Method: Draw the moment$/$EI diagram and elastic curve to somve the question.

a$)$ Determine the deflection at C $.$

b$)$ Determine the maximum deflection and its location.

Take $I=2{10}^{9}m{m}^4$ and $E=200$GPa
