Question: Question 1 ( 1 point ) A horizontal reducer is installed to connect a D i = 9 0 m m diameter pipe to a

Question 1(1 point)

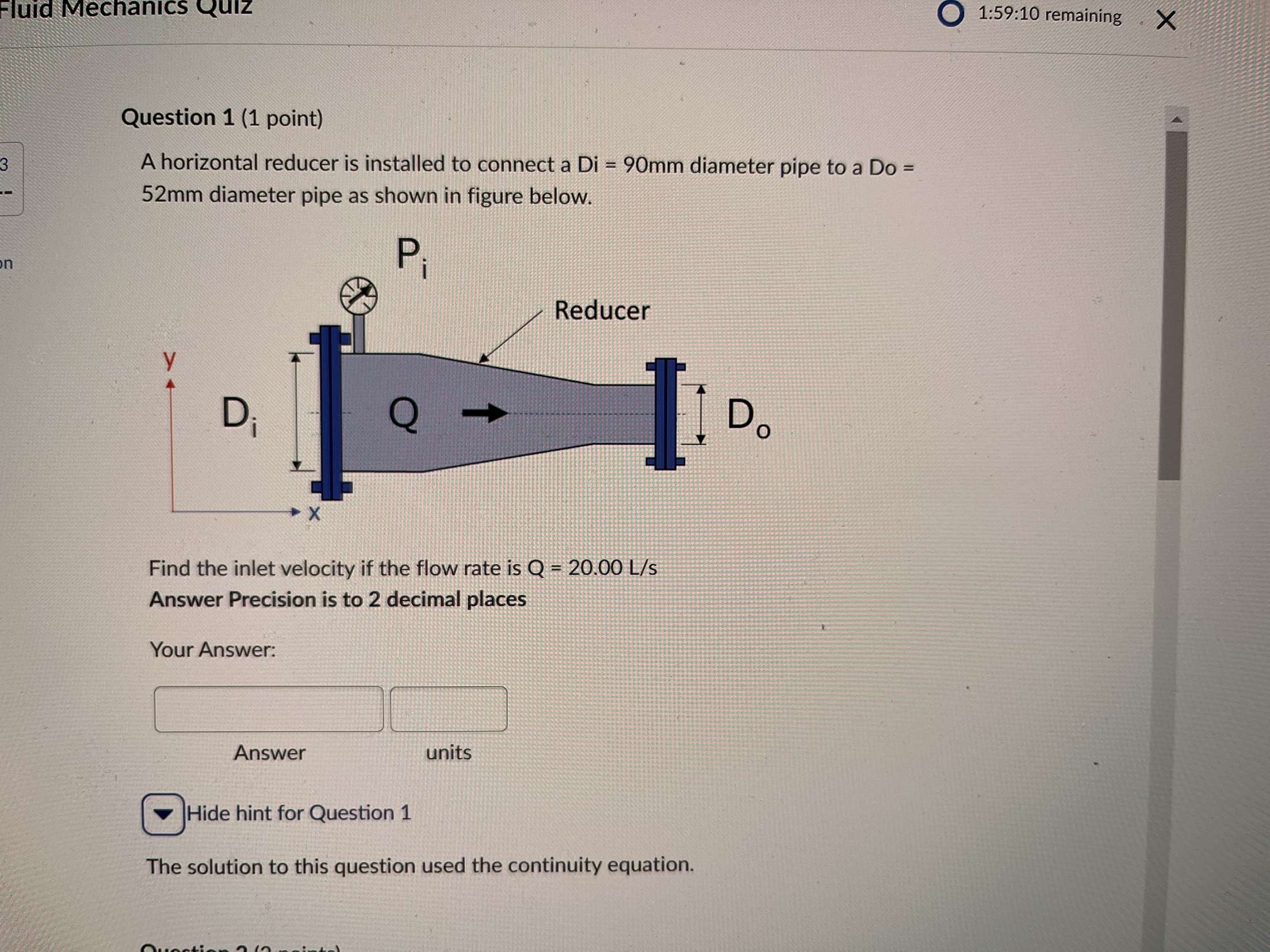

A horizontal reducer is installed to connect a Di=90mm diameter pipe to a Do=52 mm diameter pipe as shown in figure below.
Find the inlet velocity if the flow rate is Q=20.00Ls
Answer Precision is to 2 decimal places
Your Answer:
Hide hint for Question 1
The solution to this question used the continuity equation.
Question 1 ( 1 point ) A horizontal reducer is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
