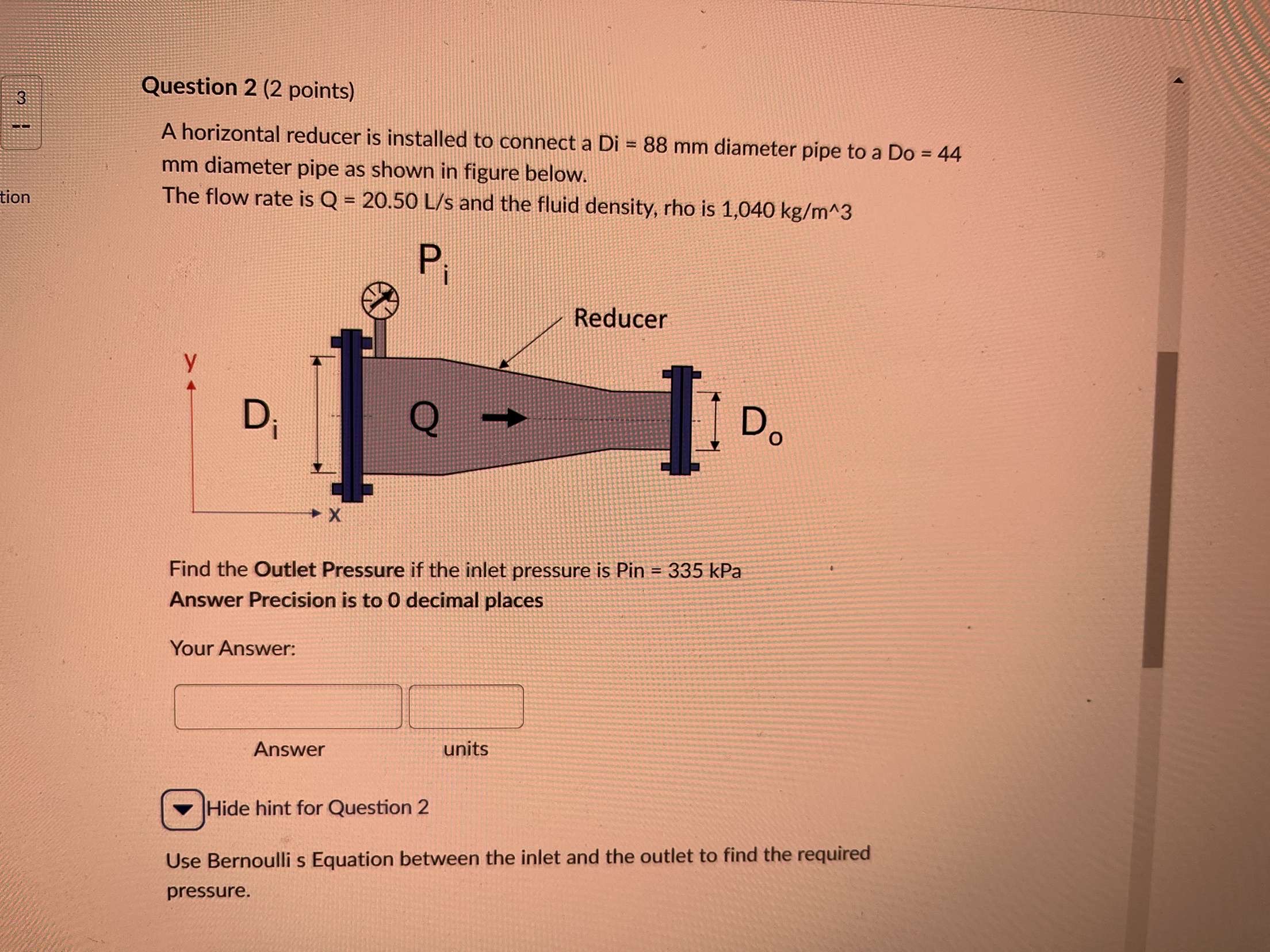

Question $2(2$ points$)$

A horizontal reducer is installed to connect a $Di=88mm$ diameter pipe to a $Do=44$ mm diameter pipe as shown in figure below.

The flow rate is $Q=20\mathrm{.}50\frac{L}{s}$ and the fluid density, rho is $1,040k\frac{g}{m^3}$

Find the Outlet Pressure if the inlet pressure is Pin $=335$kPa

Answer Precision is to $0$ decimal places

Your Answer:

$$

Answer

units

Hide hint for Question $2$

Use Bernoulli s Equation between the inlet and the outlet to find the required pressure.
