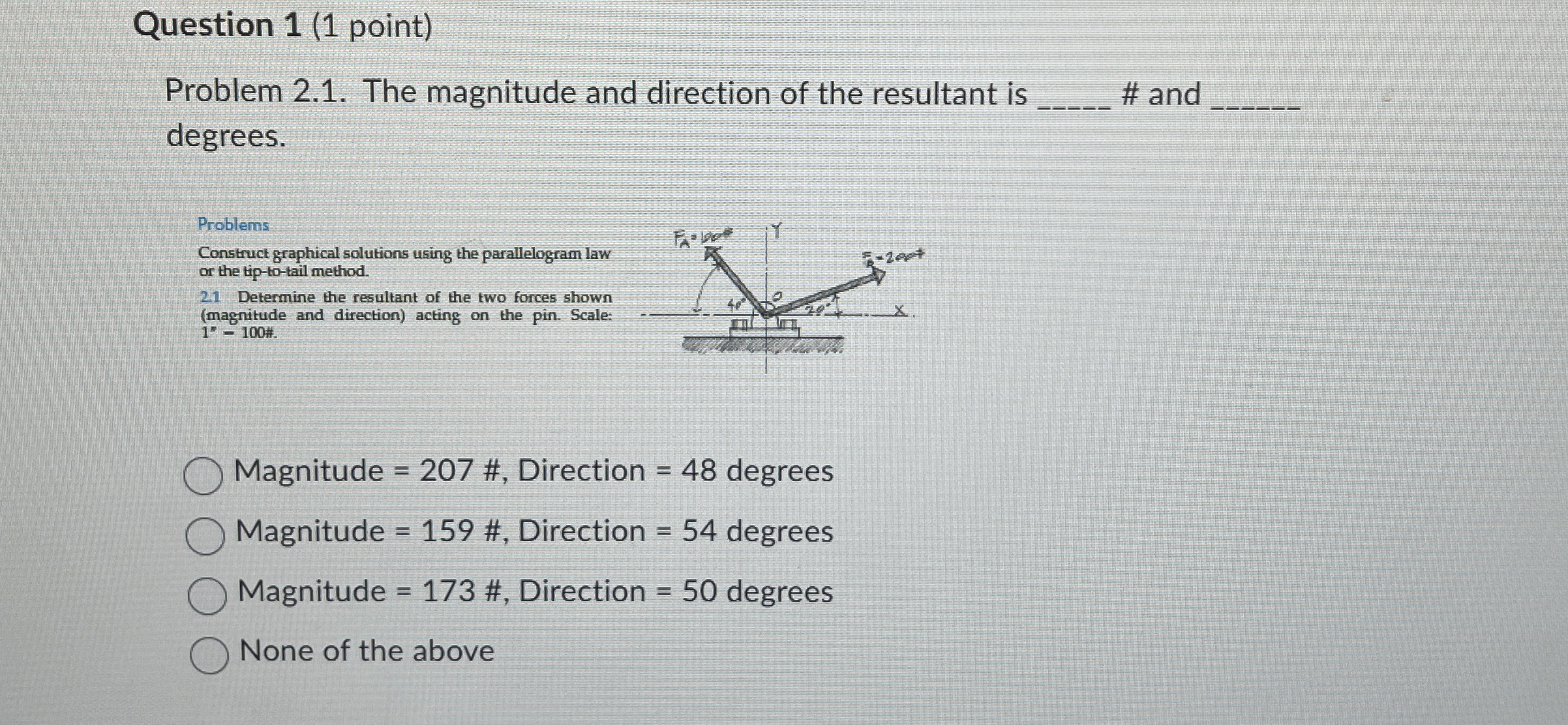

Question $1(1$ point$)$

Problem $2\mathrm{.}1.$ The magnitude and direction of the resultant is $q,$ # and $q,$ degrees.

Problems

Construct graphical solutions using the parallelogram law or the tip$-$to$-$tail method.

$21$ Determine the resultant of the two forces shown $($magnitude and direction$)$ acting on the pin. Scale: $1^{**}=100$#

Magnitude $=207$ #$,$ Direction $=48$ degrees

Magnitude $=159$ #$,$ Direction $=54$ degrees

Magnitude $=173$ #$,$ Direction $=50$ degrees

None of the above
