Question 1 (1 point)

The Cisco Nexus 9508 modular switch, as shown here, has the dimensions of 31cm by 44cm by 84cm and weighs 40kg. Describe what sort of Occupational Health and Safety (OHS) procedures you would follow when you are installing this switch into a server room rack.

Question 1 options:

Save

Question 2 (1 point)

You have been asked by Indy Real Estate, a small real estate business on the Gold Coast, to install a switch in their business premises. The business has a manager, a receptionist and five real estate agents. All of these people require Internet access through the router that you will install.

Outline the types of communication you would use, and which person in the business you would liaise with, in order to:

access the business premises to determine the existing physical layout and where to install the switch;

write a plan for the installation of the switch and deliver this document to the business; and

obtain approval from the business to go ahead with the switch installation.

Question 2 options:

Save

Question 3 (1 point)

To plan for a switch installation at Indy Real Estate, a small real estate agency, you need to obtain any existing network design documentation that the business has. Describe what types of documentation you require, and what information must be in each type of documentation.

Question 3 options:

Save

Question 4 (1 point)

You have been asked by Indy Real Estate, a small real estate business on the Gold Coast, to install a switch in their business premises. The business has a manager, a receptionist and five real estate agents. All of these people require Internet access through the router that you will install.

Given the size of the Indy Real Estate business, describe what type of switch you would install at the premises (not what specific model). Explain why you would choose this type of switch.

Question 4 options:

Save

Question 5 (1 point)

When you are choosing a suitable vendor to supply you with a switch, what three things would you would look for:

Question 5 options:

	A vendor with an excellent reputation.
	A vendor located outside of Australia and who can only be contacted on Facebook.
	A vendor that provides extended warranty on their products.
	A vendor that provides support for products at a fixed monthly price.
	A vendor that has the lowest price but provides no support.

Save

Question 6 (1 point)

Indy Real Estate has agreed to let you install a switch at their business premises. Write out a suitable installation plan of about ten steps for the installation of the switch.

Question 6 options:

Save

Question 7 (1 point)

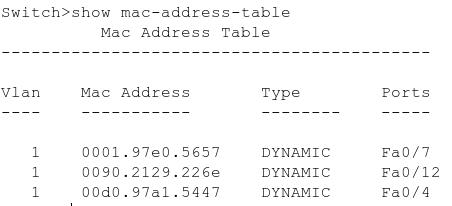

Refer to the given output from a switch. The switch has received a frame with source MAC address 0090.2129.226e and destination MAC address 0001.97e0.5650. The frame arrived on port fa0/12.

What will the switch do with this frame?

Question 7 options:

	Forward the frame on switch port Fa0/12.
	Flood the frame out all of its ports except the port from which the frame originated.
	Drop the frame because it does not have an entry for that MAC address.
	Send an ARP request out all its ports except the port from which the frame originated.
	Forward the frame to its default gateway.

Save

Question 8 (1 point)

The switches in a LAN have the following MAC addresses and switch priorities. Which switch would become the root switch for Spanning Tree?

Switch Name	MAC Address	Switch Priority
Switch 1	0003.45bc.99f3	32768
Switch 2	0008.21c5.ff07	32768
Switch 3	001c.67e2.f2a9	4096
Switch 4	0027.406e.de8a	16384
Switch 5	00f9.9092.6502	24576

Question 8 options:

	Switch 1
	Switch 5
	Switch 4
	Switch 3
	Switch 2

Save

Question 9 (1 point)

Which command enables RSTP on a Cisco switch?

Question 9 options:

spanning-tree rapid

spanning-tree mode rapid-pvst

switchport mode rstp

spanning-tree mode rstp

Question 10 (1 point)

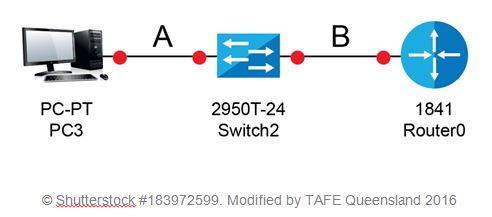

Refer to the image given. The two connected ports on the switch are not turning orange or green.

What would be the three (3) most effective steps to troubleshoot this physical layer problem?

Question 10 options:

	Ensure that the Ethernet encapsulations match on the interconnected router and switch ports.
	Ensure the switch has power.
	Ensure that cables A and B are straight-through cables.
	Reseat all cables.
	Check the IP addresses on the three devices.
	Ensure cable A is plugged into a trunk port.

Save

Question 11 (1 point)

Describe the purpose of trunk lines that connect switches to other switches, and switches to routers. In your answer, discuss how frames are modified so that they can travel across trunk lines.

Question 11 options:

DESCR

Save

Question 12 (1 point)

A router is currently connected into a switched LAN network that has no VLANs configured. The router has this interface connection to the switch:

interface fa0/0

ip address 185.67.45.3 255.255.255.0 no shutdown

The network administrator now configures the LAN network to have two VLANs as follows:

VLAN ID	Default Gateway	Netmask
15	192.37.15.1	255.255.255.0
28	192.37.28.1	255.255.255.128

The router needs to be reconfigured to perform inter-VLAN routing. Choose three sets of commands which need to be performed to enable inter-VLAN routing.

Question 12 options:

	interface fa0/0.15 encapsulation dot1q 15 ip address 192.37.15.1 255.255.255.0 no shutdown
	interface fa0 encapsulation dot1q 15 ip address 192.37.15.1 255.255.255.0 no shutdown
	interface fa0 ip address 192.37.28.1 255.255.255.128 ip address 192.37.15.1 255.255.255.0 no shutdown
	interface fa0/0 no ip address
	interface fa0/0.28 encapsulation dot1q 28 ip address 192.37.28.1 255.255.255.128 no shutdown
	interface fa0/0 vlan 15 192.37.15.1 255.255.255.0 vlan 28 192.37.28.1 255.255.255.128 no shutdown

Save

Question 13 (1 point)

Refer to the image given.

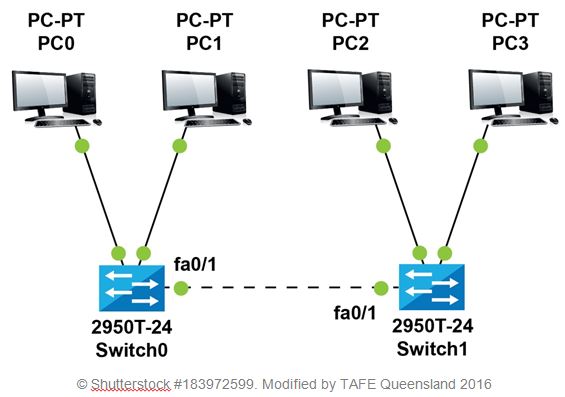

PC0 and PC2 are on VLAN 1 with IP addresses and masks correctly configured. PC1 and PC3 are on VLAN 5 with IP addresses and masks correctly configured. PC0 and PC2 can ping each other but PC1 and PC3 cannot ping each other.

What could be preventing PC1 and PC3 from pinging each other?

Question 13 options:

Save

Question 14 (1 point)

Which of the following set of commands will set the console password on a Cisco switch to coffee ?

Question 14 options:

	enable secret coffee
	line con 0 password coffee
	line vty 0 15 password coffee login
	line con 0 password coffee login

Save

Question 15 (1 point)

You have a Cisco Catalyst switch which needs to have its IOS firmware upgraded. To do this, you would:

Question 15 options:

	Copy a new version of the firmware into the switchs ROM.
	Copy a new version of the firmware into the switchs Flash.
	Copy a new version of the firmware into the switchs NVRAM.
	Copy a new version of the firmware into the switchs RAM.

Save

Question 16 (1 point)

Three of the advantages of VLANs include:

Question 16 options:

	The number of broadcast domains is increased, thus minimising the impact of broadcast storms.
	The number of broadcast domains is reduced, thus minimising the impact of broadcast storms.
	VLANs make it easier for IT staff to configure new logical groups, because the VLANs all belong to the same subnet.
	A higher level of network security can be reached by separating sensitive data traffic from other network traffic.
	Switches can route packets between VLANs based on their MAC addresses.
	A more efficient use of bandwidth can be achieved as switches can send frames for different VLANs across the same link at the same time.
	LAN devices can be grouped by department and/or function, and not by physical location.

Save

Question 17 (1 point)

The switches have the given MAC addresses and are connected as shown in the diagram. There is only VLAN 1 on all switches and all switches have the same priority.

Write out the final Spanning Tree state (Root, Designated or Blocked) for each of the eight switch ports shown in the diagram:

Question 17 options:

Skip Toolbars for . More Insert actions.

FormatParagraphAddressPreformattedH1 - Heading 1H2 - Heading 2H3 - Heading 3H4 - Heading 4H5 - Heading 5H6 - Heading 6

More Text actions.

Show All Components

Save

Question 18 (1 point)

Which method of forwarding frames causes the least amount of latency?

Question 18 options:

Fragment-free

Store and forward

Decapsulate and encapsulate

Cut-through

Question 19 (1 point)

A switch has the following MAC address table:

What can you conclude about the devices connected to the switch?

Question 19 options:

	Port fa0/3 is disabled.
	Port fa0/13 is configured as a trunk port.
	A switch or hub is directly connected to port fa0/1.
	A PC is directly connected to port fa0/1.

Save

Question 20 (1 point)

A network designer has proposed the following redundant network design with a collapsed core, a router on a stick and five VLANs.

How many broadcast domains are in the design? Make sure you explain why you chose your answer.

Question 20 options:

Save

Question 21 (1 point)

Define the term convergence as it applies to the concepts of routing. In your answer, explain why it is important to reach convergence quickly.

Question 21 options:

Save

Question 22 (1 point)

Which of the following commands will set the privileged EXEC password on a Cisco router to coffee?

Question 22 options:

	Router(config)# enable secret class coffee
	Router(config)# enable secret coffee
	Router(config)# set privileged password coffee
	Router(config)# password secret coffee

Save

Question 23 (1 point)

You have a Cisco 2600 router which needs to have its IOS firmware upgraded.

To do this, you would copy a new version of the firmware into the routers :

Question 23 options:

	RAM
	ROM
	NVRAM
	Flash

Save

Question 24 (1 point)

Consider the diagram given. Which two static route commands must be configured to allow communication between the 192.168.1.0/24 and 10.0.0.0/8 networks?

Question 24 options:

	B(config)# ip route 192.168.1.0 255.255.255.0 172.16.40.2
	A(config)# ip route 10.0.0.0 255.0.0.0 172.16.40.2
	B(config)# ip route 192.168.1.0 255.255.255.0 172.16.40.1
	B(config)# ip route 0.0.0.0 0.0.0.0 fa0/0/0
	A(config)# ip route 10.0.0.0 255.0.0.0 10.0.0.1
	A(config)# ip route 10.0.0.0 255.0.0.0 s0/0/0

Save

Question 25 (1 point)

You do a show ip route command on a router and you see several routing entries. Some are labelled as `C entries, some as `S entries and some as `R entries.

For each of these three entry types, explain from where the router obtained the routing information for them.

Question 25 options:

Save

Question 26 (1 point)

You manage a router with the fa0/0 (LAN) IP address 78.23.45.1/25 and the s0/0/0 (WAN) IP address 103.45.67.2/30. The router is running classless EIGRP in autonomous system 1 (AS 1). The users of your LAN complain that they cannot ping the remote machine 8.8.8.8. You suspect that the router is misconfigured.

Write out a list of router CLI debug commands that you could use to help diagnose the problem, and explain what information each debug command shows that would help your diagnosis.

Question 26 options:

Save

Question 27 (1 point)

Briefly outline the characteristics of the OSPF routing protocol that make it different to protocols such as RIP and EIGRP.

In your answer, specifically describe the frequency of routing updates, to which other routers they are sent to, and the algorithm used to determine the best path to a remote network.

Question 27 options:

Question 28 (1 point)

VLSM and CIDR have several advantages over classful routing. Which two advantages do VLSM and CIDR provide?

Question 28 options:

	Each subnet in a VLSM IP address allocation must have the same netmask.
	Routers can learn the correct path to discontiguous subnets with CIDR.
	VLSM and CIDR allow the broadcast address to be used as an IP address for devices.
	CIDR cannnot summarise routes; classful routing protocols can summarise routes.
	All VLSM subnets must be the same size.
	CIDR allows subnets which are not class-A, -B or C to be advertised in routing updates.

Save

Question 29 (1 point)

EIGRP route updates are bounded and partial. Explain what these two terms mean in relation to EIGRP.

Question 29 options:

Save

Question 30 (0.5 points)

What four mechanisms do distance vector routing protocols use to prevent or reduce routing loops ?

Question 30 options:

	Flooding of route updates to all routers
	Hold down timers
	Infinity metrics
	Use of multiple cost factors (bandwidth, load, delay, reliability)
	Split Horizon with Poison Reverse
	Split Horizon with Route poisoning
	Route poisoning

Save

Question 31 (0.5 points)

Out of the following four mechanisms of distance vector routing protocols, choose one mechanism and describe how it works to prevent or reduce routing loops.

Hold down timers

Split Horizon with Poison Reverse

Infinity metrics

Flooding of route updates to all routers

Question 31 options:

Save

Question 32 (1 point)

A packet going to 145.56.78.20 arrives at Router 4 which has the following routing table. To which next router will Router 4 send this packet ?

Destination Network	Mask	Cost	Via
145.56.78.16	255.255.255.240	7	12.8.8.8
144.56.78.0	255.255.254.0	12	192.105.7.6
145.56.78.0	255.255.255.0	5	144.56.78.1
12.8.8.0	255.255.255.240	9	12.8.8.100
0.0.0.0	0.0.0.0	14	144.56.78.1

Question 32 options:

	12.8.8.8
	12.8.8.100
	The packet will be dropped by Router 4.
	192.105.7.6

Save

Question 33 (1 point)

Router 4 has the following routing table. Write out the RIPv2 routing advertisement that Router 4 sends to its neighbour 192.105.7.6. Your answer should be a table with three columns.

Destination Network	Mask	Cost	Next Router
101.56.78.128	255.255.255.128	3	102.11.3.4
96.78.2.0	255.255.254.0	11	67.34.1.7
86.74.12.32	255.255.255.252	4	192.105.7.6
0.0.0.0	0.0.0.0	1	17.18.19.12

Question 33 options:

Skip Toolbars for . More Insert actions.

FormatParagraphAddressPreformattedH1 - Heading 1H2 - Heading 2H3 - Heading 3H4 - Heading 4H5 - Heading 5H6 - Heading 6

More Text actions.

Show All Components

Save

Question 34 (1 point)

In order to minimise network traffic, OSPF elects a single router to update a group of neighbour routers. Explain why it does this. On a LAN subnet with four routers, which of the four routers will be elected. Give the term used to name this router.

Question 34 options:

	This router is known as the Designated Router, and by default it is the router with the highest IP address on any interface.
	This router is known as the Designated Router, and by default it is the router with the lowest IP address on any interface.
	This router is known as the Dominant Router, and by default it is the router with the lowest physical address on any interface.
	This router is known as the Default Router, and it is the router with the biggest routing table.

Save

Question 35 (1 point)

An IP address allocation of size /20 is subdivided using VLSM. This could produce the following VLSM subnets.

Question 35 options:

	Five /22 subnets and three /23 subnets.
	VLSM cannot be applied to an IP address allocation of size /20.
	One /21 subnet, one /22 subnet and two /23 subnets.
	Four /22 subnets and ten /30 subnets.

Save

Question 36 (1 point)

The Cisco 7604 router has the dimensions of 22cm by 44cm by 55cm and weighs 18kg.

Describe what sort of Occupational Health and Safety (OHS) procedures you would follow when you are installing this router into a server room rack.

Question 36 options:

Question 37 (1 point)

You have been asked by Indy Real Estate, a small real estate business on the Gold Coast, to install a router in their business premises. The business has a manager, a receptionist and five real estate agents. All of these people require Internet access through the router that you will install.

Outline the types of communication you would use, and which person in the business you would liaise with, in order to:

Access the business premises to determine the existing physical layout and where to install the router;

Write a plan for the installation of the router and deliver this document to the business; and

Obtain approval from the business to go ahead with the router installation.

Question 37 options:

Save

Question 38 (1 point)

To plan for a router installation at Indy Real Estate, a small real estate agency, you need to obtain any existing network design documentation that the business has.

Describe what types of documentation you require, and what information must be in each type of documentation.

Question 38 options:

Save

Question 39 (1 point)

You have been asked by Indy Real Estate, a small real estate business on the Gold Coast, to install a router in their business premises. The business has a manager, a receptionist and five real estate agents. All of these people require Internet access through the router that you will install.

Given the size of the Indy Real Estate business, describe what type of router you would install at the premises (not what specific model). Explain why you would choose this type of router.

Question 39 options:

Save

Question 40 (1 point)

When you are choosing a suitable vendor to supply you with a router, list the type of characteristics you would look for.

Question 40 options:

Save

Question 41 (1 point)

Indy Real Estate has agreed to let you install a router at their business premises. Write out a suitable installation plan of about ten steps for the installation of the router.

Question 41 options:
