Question 1:

1. Select an area in your office or home. Take an "As Is" Picture of the area.

2. Apply the 5S Steps to above area and after completion take a picture of the NEW area.

a) Please submit your BEFORE and AFTER picture here.

b) List the key challenges in applying the 5S.

Question 2:

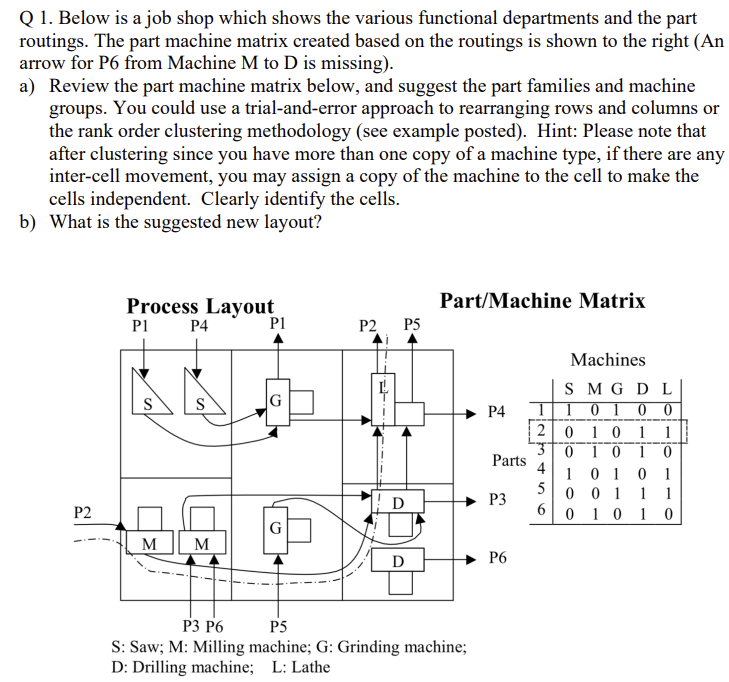

Q 1. Below is a job shop which shows the various functional departments and the part routings. The part machine matrix created based on the routings is shown to the right (An arrow for P6 from Machine M to D is missing). a) Review the part machine matrix below, and suggest the part families and machine groups. You could use a trial-and-error approach to rearranging rows and columns or the rank order clustering methodology (see example posted). Hint: Please note that after clustering since you have more than one copy of a machine type, if there are any inter-cell movement, you may assign a copy of the machine to the cell to make the cells independent. Clearly identify the cells. b) What is the suggested new layout? Process Layout Part/Machine Matrix Pl P4 P1 P2 Ps Machines P3 P6 P35 S: Saw; M: Milling machine; G: Grinding machine; D: Drilling machine; L: Lathe
