Question: Question 1 [ 2 0 Marks ] ( a ) Consider the unity feedback system shown in Figure 1 . 1 G ( s )

Question 1
[20 Marks]
(a)

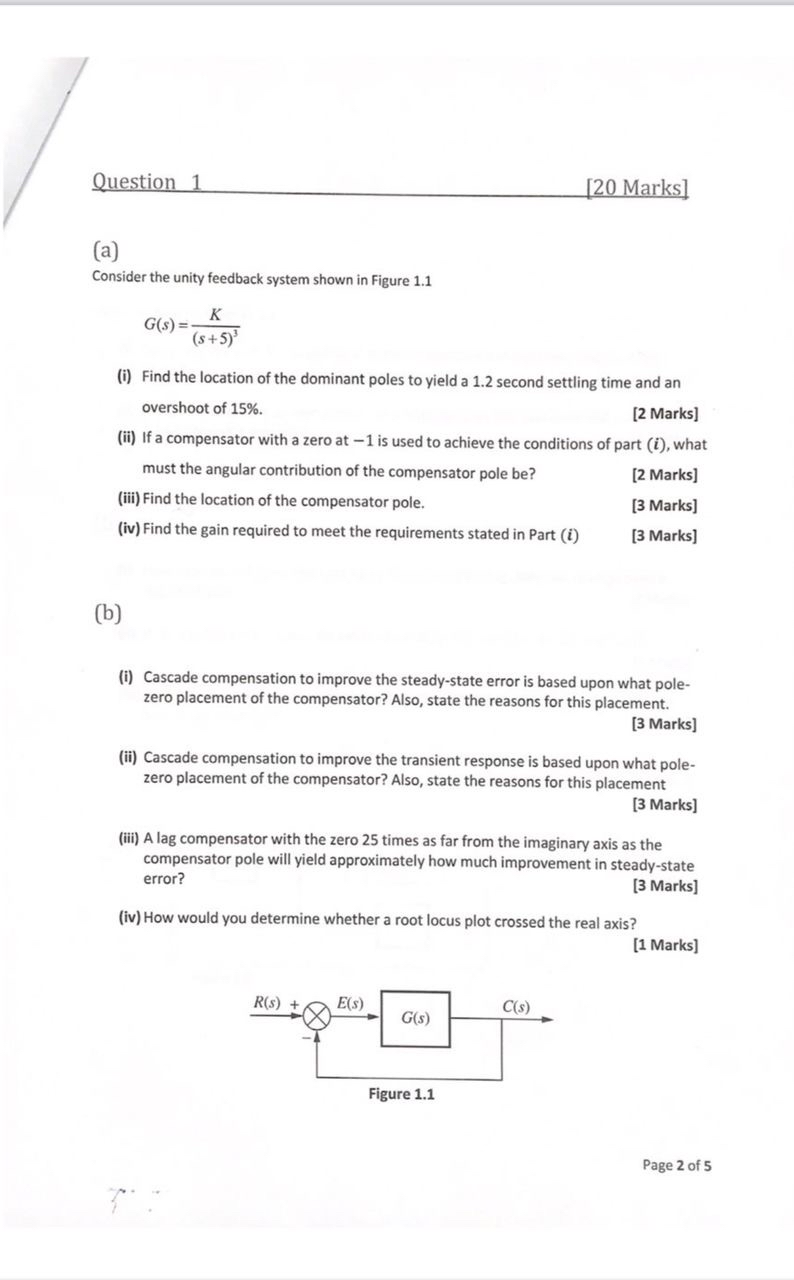

Consider the unity feedback system shown in Figure 1.1
G(s)=K(s+5)3
(i) Find the location of the dominant poles to yield a 1.2 second settling time and an overshoot of 15%.
[2 Marks]
(ii) If a compensator with a zero at -1 is used to achieve the conditions of part (i), what must the angular contribution of the compensator pole be?
[2 Marks]
(iii) Find the location of the compensator pole.
[3 Marks]
(iv) Find the gain required to meet the requirements stated in Part (i)
[3 Marks]
(b)
(i) Cascade compensation to improve the steady-state error is based upon what polezero placement of the compensator? Also, state the reasons for this placement.
[3 Marks]
(ii) Cascade compensation to improve the transient response is based upon what polezero placement of the compensator? Also, state the reasons for this placement
[3 Marks]
(iii) A lag compensator with the zero 25 times as far from the imaginary axis as the compensator pole will yield approximately how much improvement in steady-state error?
[3 Marks]
(iv) How would you determine whether a root locus plot crossed the real axis?
[1 Marks]
