Question: QUESTION 6 a ) Differentiate between a lead compensator and lag compensator using any five different factors. ( 1 0 marks ) b ) Consider

QUESTION 6
a) Differentiate between a lead compensator and lag compensator using any five different factors.
(10 marks)

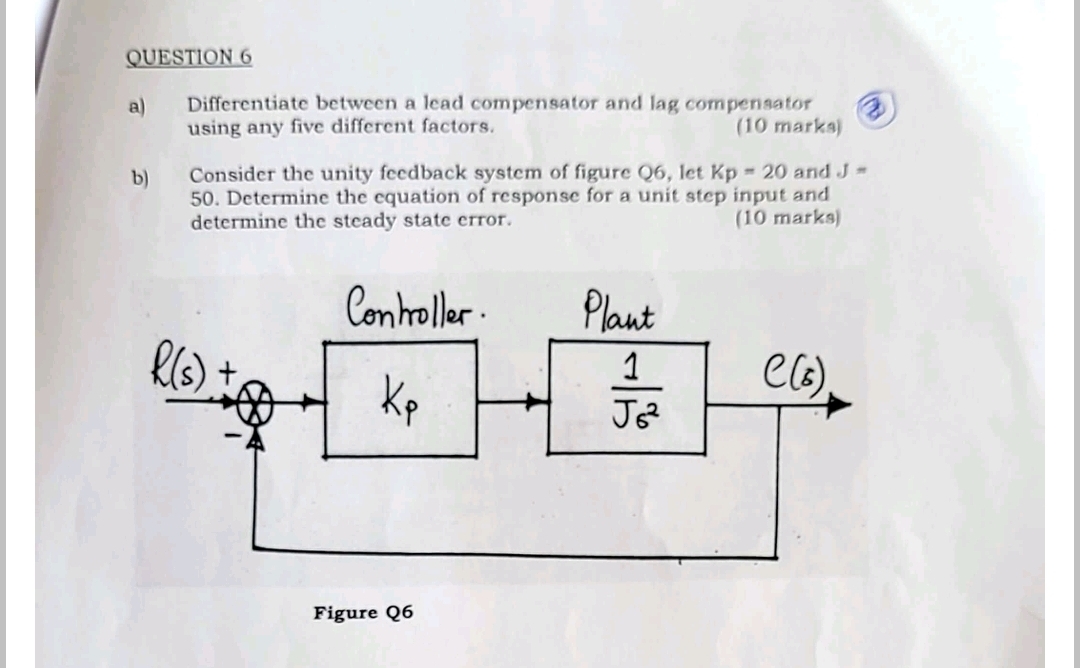

b) Consider the unity feedback system of figure Q6, let Kp=20 and J=50. Determine the equation of response for a unit step input and determine the steady state error.
(10 marks)
QUESTION 6 a ) Differentiate between a lead

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
