Question: Question 1 ( 2 0 points ) For the truss shown: A ) Identify all of the zero force members in the loaded truss. B

Question 1(20 points)

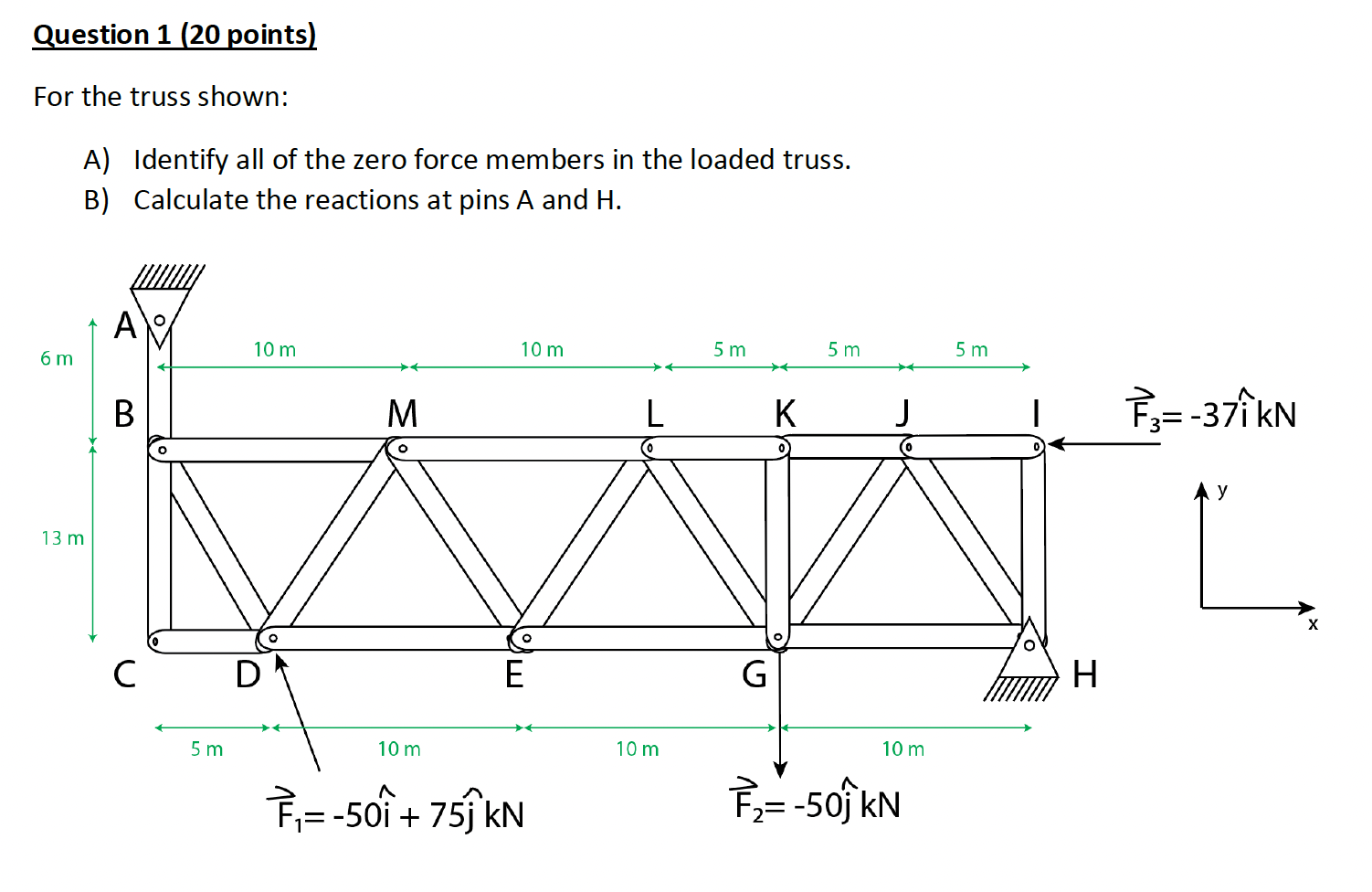

For the truss shown:
A) Identify all of the zero force members in the loaded truss.
B) Calculate the reactions at pins A and H .
Question 1 ( 2 0 points ) For the truss shown: A

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
