Question 1(25 points):

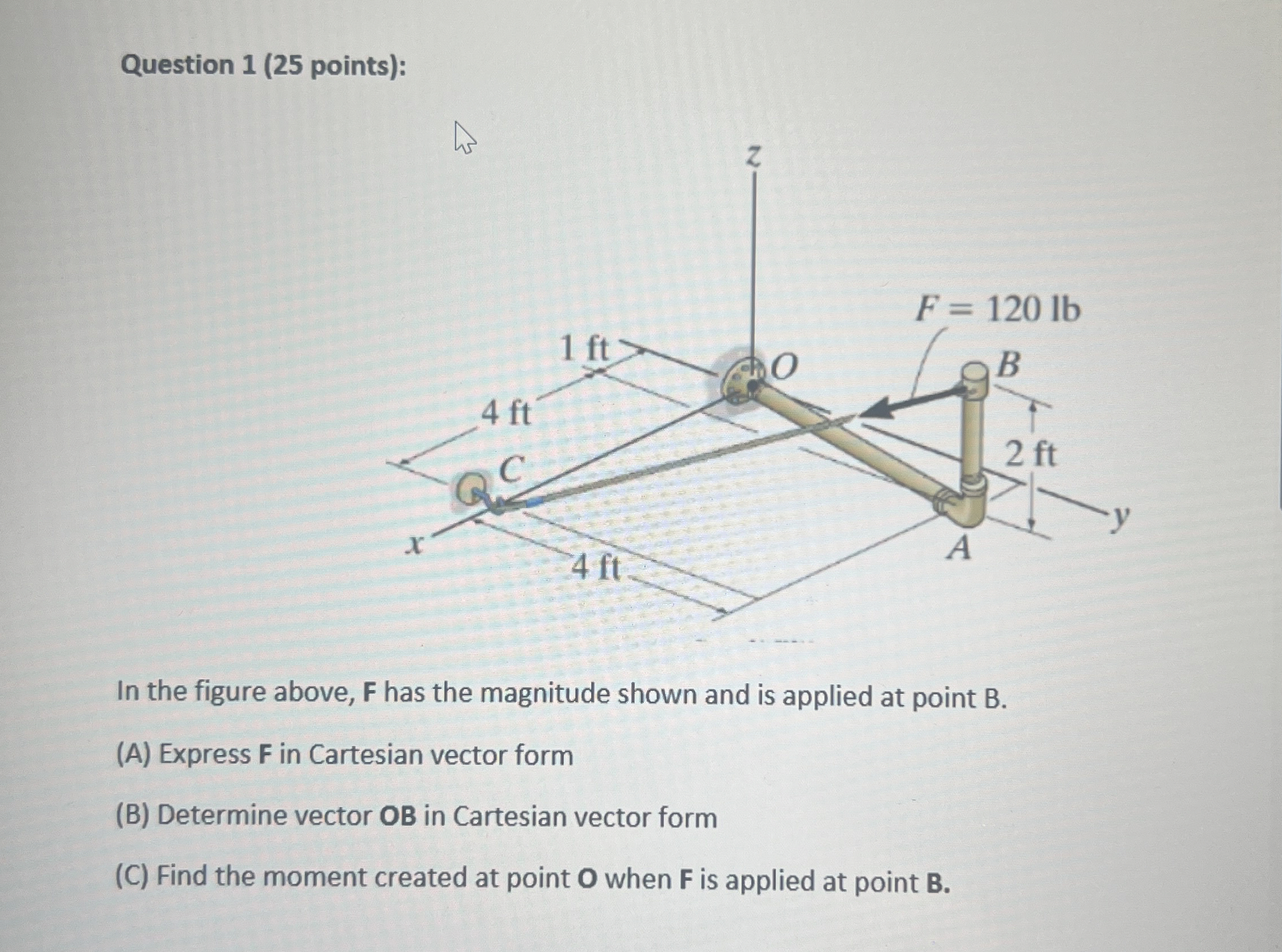

In the figure above, F has the magnitude shown and is applied at point B.
(A) Express F in Cartesian vector form
(B) Determine vector OB in Cartesian vector form
(C) Find the moment created at point O when F is applied at point B.
Specifically need help with (C)
