Question: Question 1 2 A ( 1 2 - mathrm { m } ) pole supports a horizontal cable CD and is held

Question 12

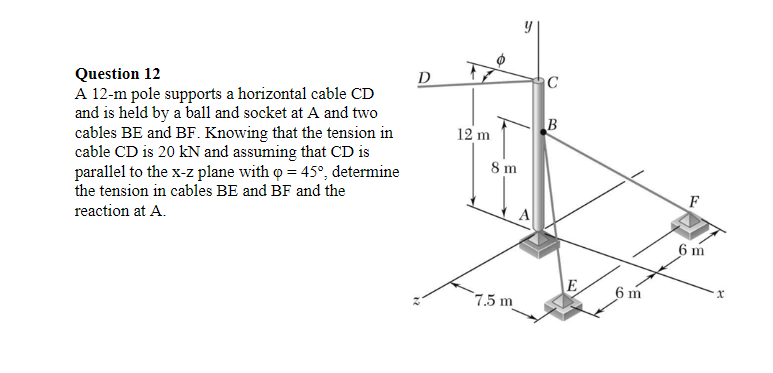

A \(12-\mathrm{m}\) pole supports a horizontal cable CD and is held by a ball and socket at A and two cables BE and BF. Knowing that the tension in cable CD is 20 kN and assuming that CD is parallel to the \(\mathrm{x}-\mathrm{z}\) plane with \(\varphi=45^{\circ}\), determine the tension in cables BE and BF and the reaction at A .
Question 1 2 A \ ( 1 2 - \ mathrm { m } \ ) pole

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
