Question: QUESTION - 1 ) ( 3 3 P ) Solve the given truss system by Virtual Force Method and calculate axial forces of members by

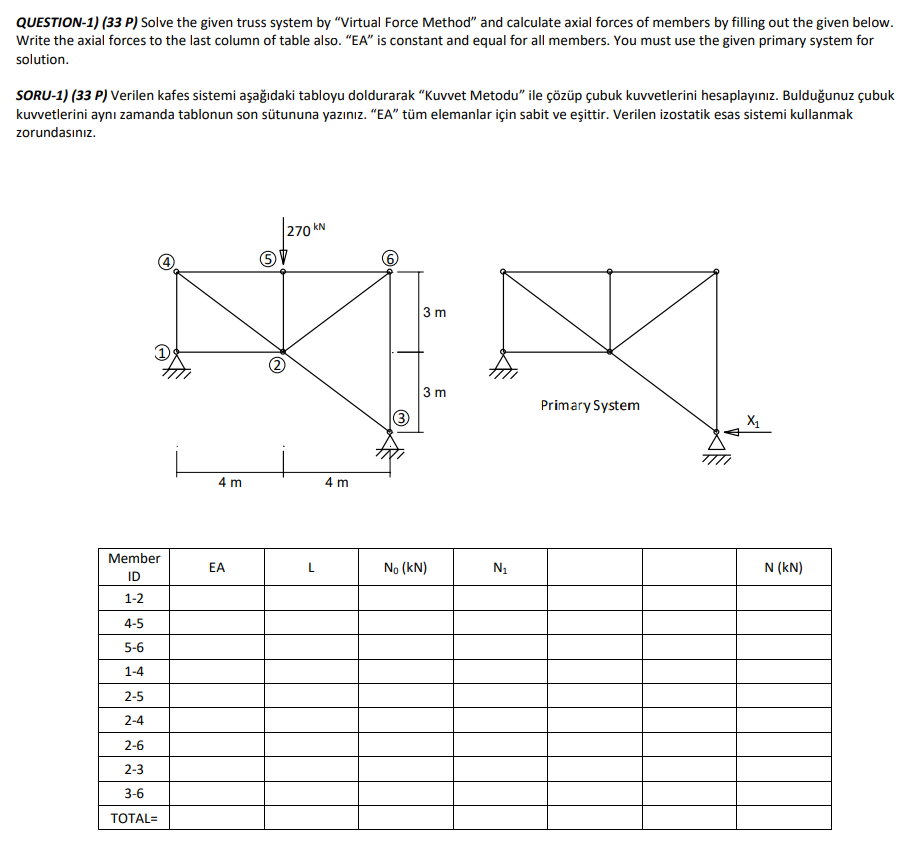

QUESTION-1)(33 P) Solve the given truss system by "Virtual Force Method" and calculate axial forces of members by filling out the given below. Write the axial forces to the last column of table also. "EA" is constant and equal for all members. You must use the given primary system for solution.
SORU-1)(33 P) Verilen kafes sistemi aadaki tabloyu doldurarak "Kuvvet Metodu" ile zp ubuk kuvvetlerini hesaplaynz. Bulduunuz ubuk kuvvetlerini ayn zamanda tablonun son stununa yaznz."EA" tm elemanlar iin sabit ve eittir. Verilen izostatik esas sistemi kullanmak zorundasnz.
\table[[\table[[Member],[ID]],EA,L,N_(0)(kN),N_(1),N(kN)],[1-2],[4-5],[5-6],[1-4],[2-5],[2-4],[2-6],[2-3],[3-6],[TOTAL=,,,,,]]
