Question $1-85$ Marks

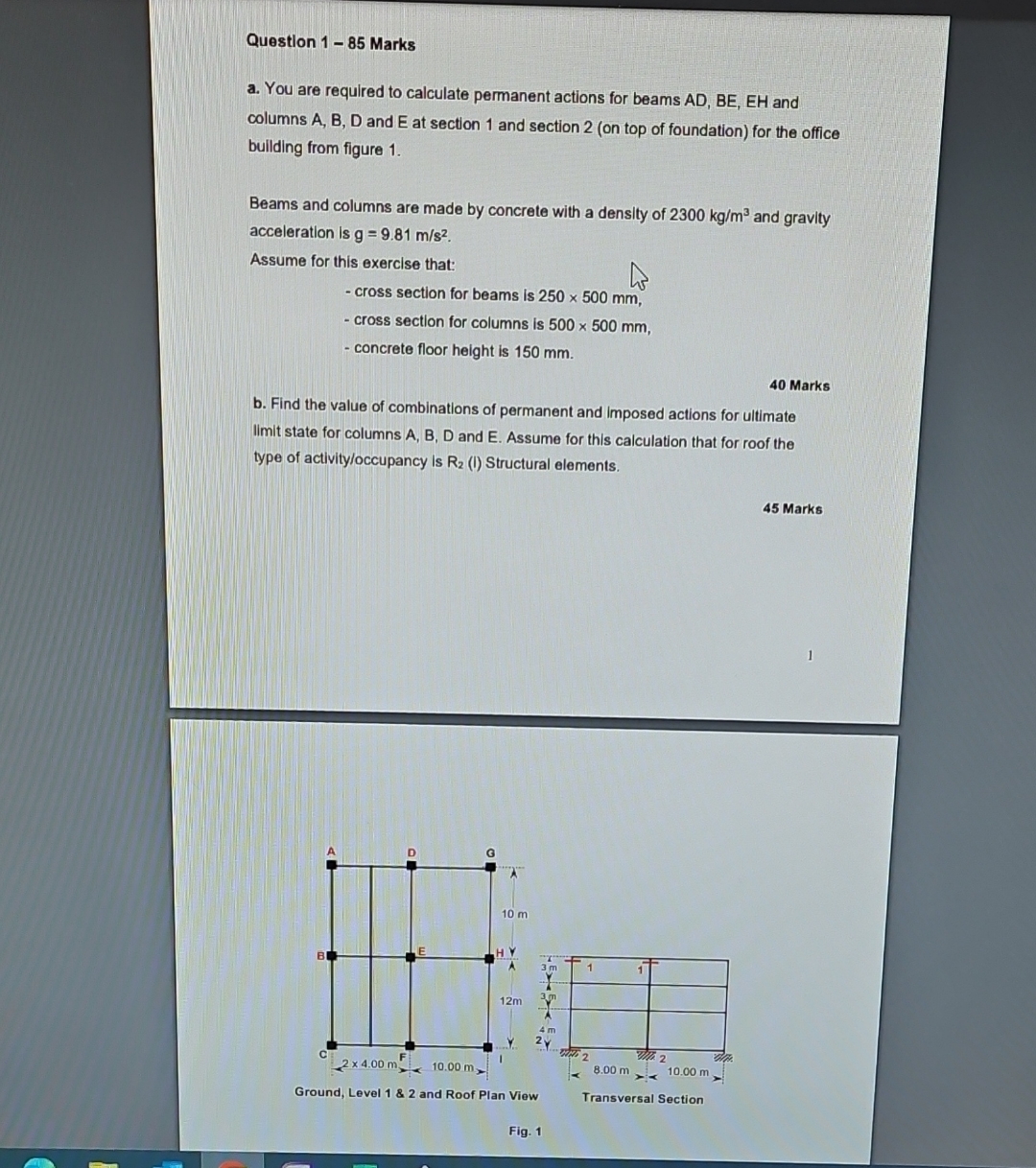

a$.$ You are required to calculate permanent actions for beams $AD,BE,EH$ and columns A$,$ B$,$ D and E at section $1$ and section $2($on top of foundation$)$ for the office building from figure $1.$

Beams and columns are made by concrete with a density of $2300k\frac{g}{m^3}$ and gravity acceleration is $g=9\mathrm{.}81\frac{m}{s^2}.$

Assume for this exercise that:

cross section for beams is $250500mm,$

cross section for columns is $500500mm,$

concrete floor height is $150$ mm $.$

$40$ Marks

b$.$ Find the value of combinations of permanent and imposed actions for ultimate

limit state for columns A$,$ B$,$ D and E$.$ Assume for this calculation that for roof the type of activity$/$occupancy is $R_2($I$)$ Structural elements.

$45$ Marks

$1$

Ground, Level $1$&$2$ and Roof Plan View

Transversal Section

Fig. $1$
