Question: Question 1 A B Sum (35 pts) This program implements the Full Adder functionality inside the module definition as structural modeling. You need fill in

Question 1 A B Sum (35 pts) This program implements the

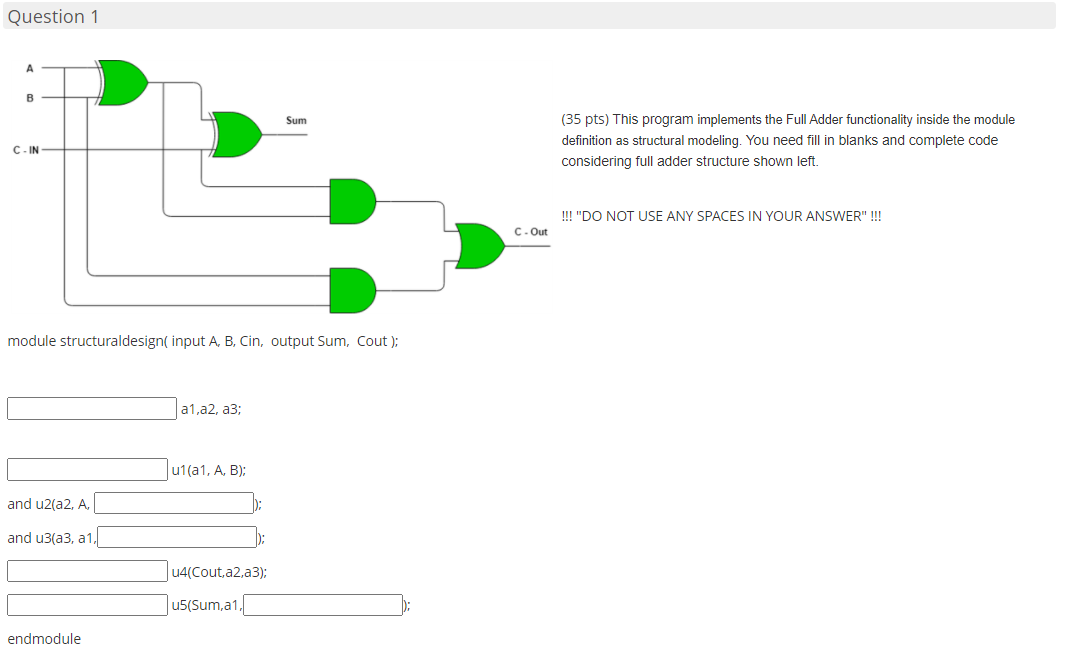

Question 1 A B Sum (35 pts) This program implements the Full Adder functionality inside the module definition as structural modeling. You need fill in blanks and complete code considering full adder structure shown left. C-IN !!! "DO NOT USE ANY SPACES IN YOUR ANSWER" !!! C. Out module structuraldesign(input A, B, Cin, output Sum, Cout); a1,a2, a3; u1(a1, A, B); and u2(a2, A, and u3(a3, a1, u4(Cout, a2 a3); u5(Sum, a1 endmodule
