Question: Question #1 a) Derive the reachability tree for the system composed of P1 and P2 b) What are the design errors that are captured by

$Question \#1 a) Derive the reachability tree for the system composed$

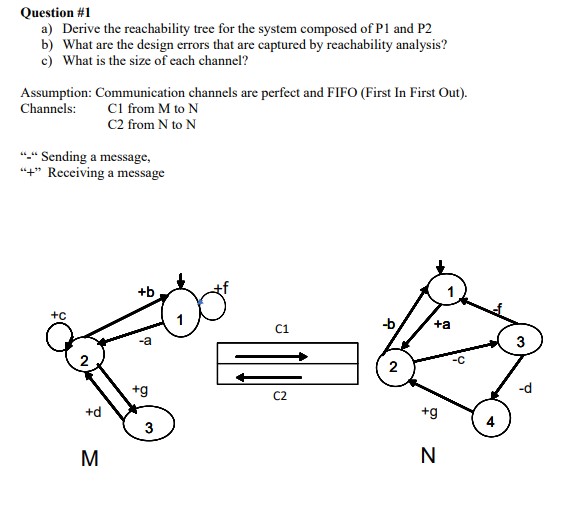

Question \#1 a) Derive the reachability tree for the system composed of P1 and P2 b) What are the design errors that are captured by reachability analysis? c) What is the size of each channel? Assumption: Communication channels are perfect and FIFO (First In First Out). Channels: C1 from M to N C2 from N to N "_" Sending a message, "+" Receiving a message

Step by Step Solution

There are 3 Steps involved in it
