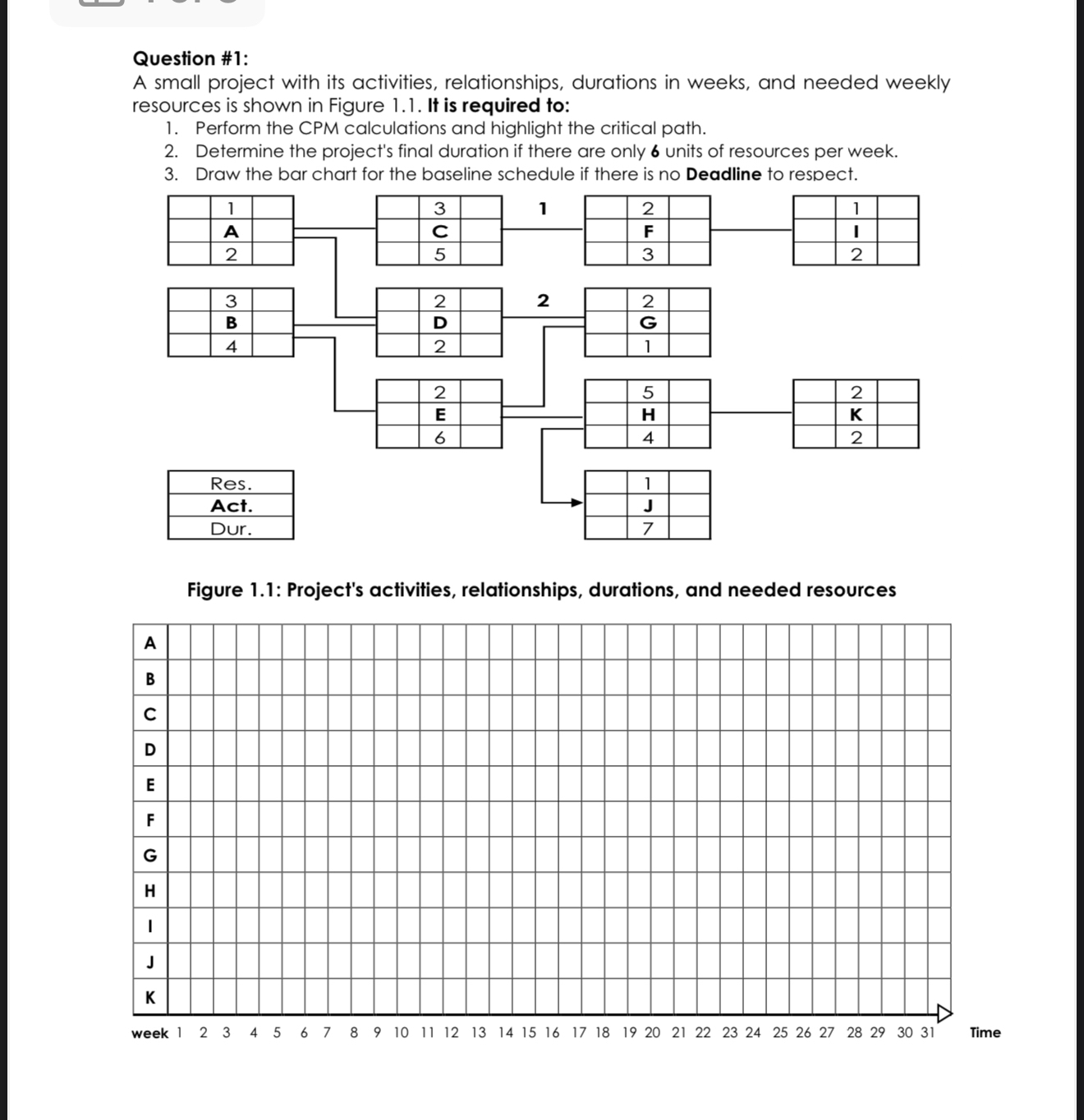

Question #$1$:

A small project with its activities, relationships, durations in weeks, and needed weekly resources is shown in Figure $1\mathrm{.}1.$ It is required to:

Perform the CPM calculations and highlight the critical path.

Determine the project's final duration if there are only $6$ units of resources per week.

Draw the bar chart for the baseline schedule if there is no Deadline to respect.

Figure $1\mathrm{.}1$: Project's activities, relationships, durations, and needed resources

Time
