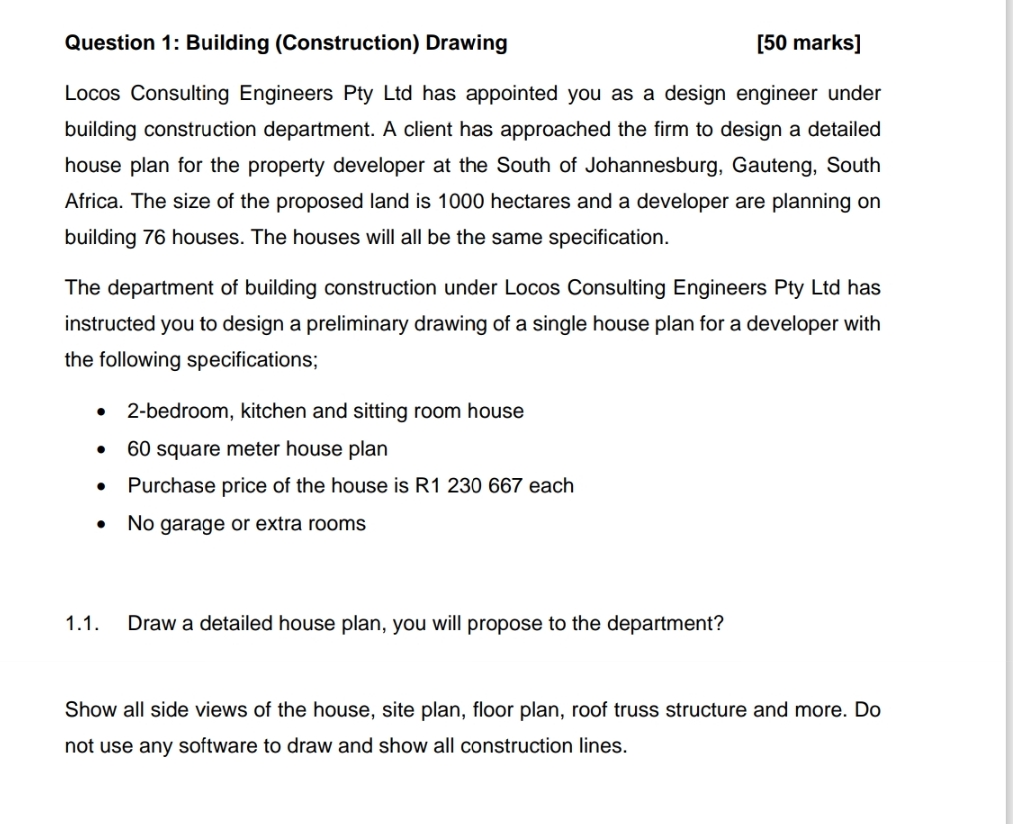

Question $1$: Building $($Construction$)$ Drawing

$[50$ marks$]$

Locos Consulting Engineers Pty Ltd has appointed you as a design engineer under building construction department. A client has approached the firm to design a detailed house plan for the property developer at the South of Johannesburg, Gauteng, South Africa. The size of the proposed land is $1000$ hectares and a developer are planning on building $76$ houses. The houses will all be the same specification.

The department of building construction under Locos Consulting Engineers Pty Ltd has instructed you to design a preliminary drawing of a single house plan for a developer with the following specifications;

$2-$bedroom, kitchen and sitting room house

$60$ square meter house plan

Purchase price of the house is R$1230667$ each

No garage or extra rooms

$1\mathrm{.}1.$ Draw a detailed house plan, you will propose to the department?

Show all side views of the house, site plan, floor plan, roof truss structure and more. Do not use any software to draw and show all construction lines.
