Question: Question 1 Determine the maximum value of the average normal stress in the links connecting ( a ) point B and ( b ) point

Question 1

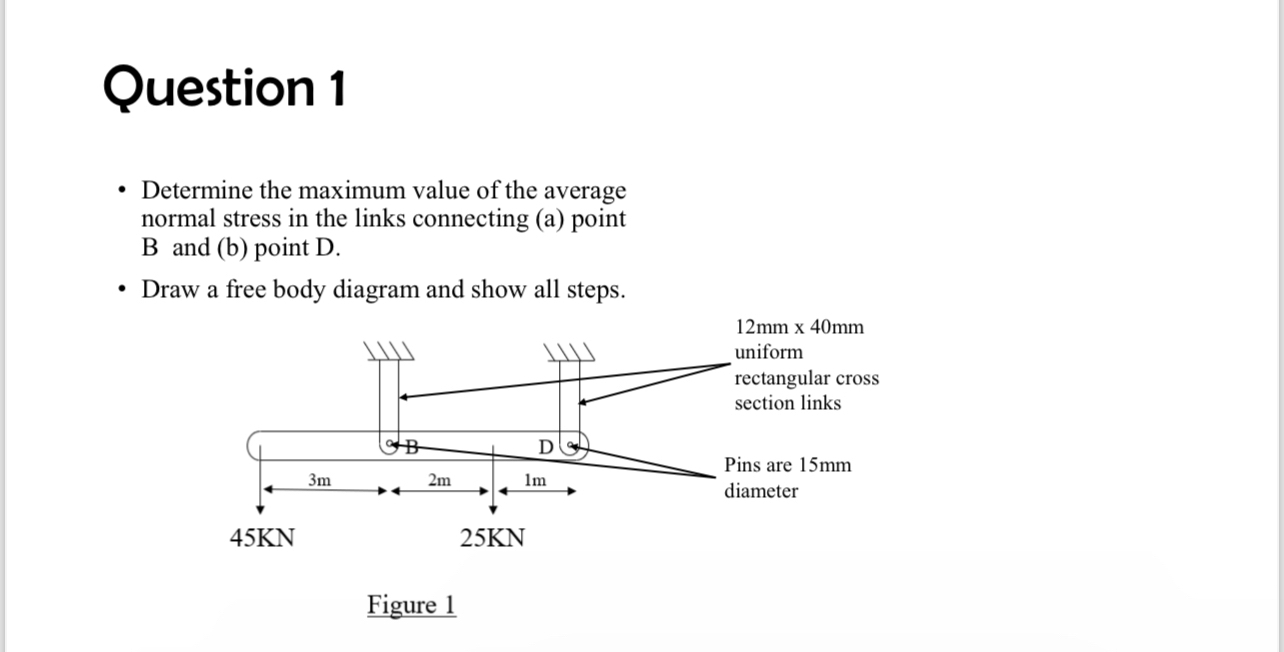

Determine the maximum value of the average normal stress in the links connecting (a) point B and (b) point D .
Draw a free body diagram and show all steps.
1igute 1
Question 1 Determine the maximum value of the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
