Question: Question # 1 Determine the support reactions for the simple beam. The beam is supported by a Pin at ( A )

Question \#1

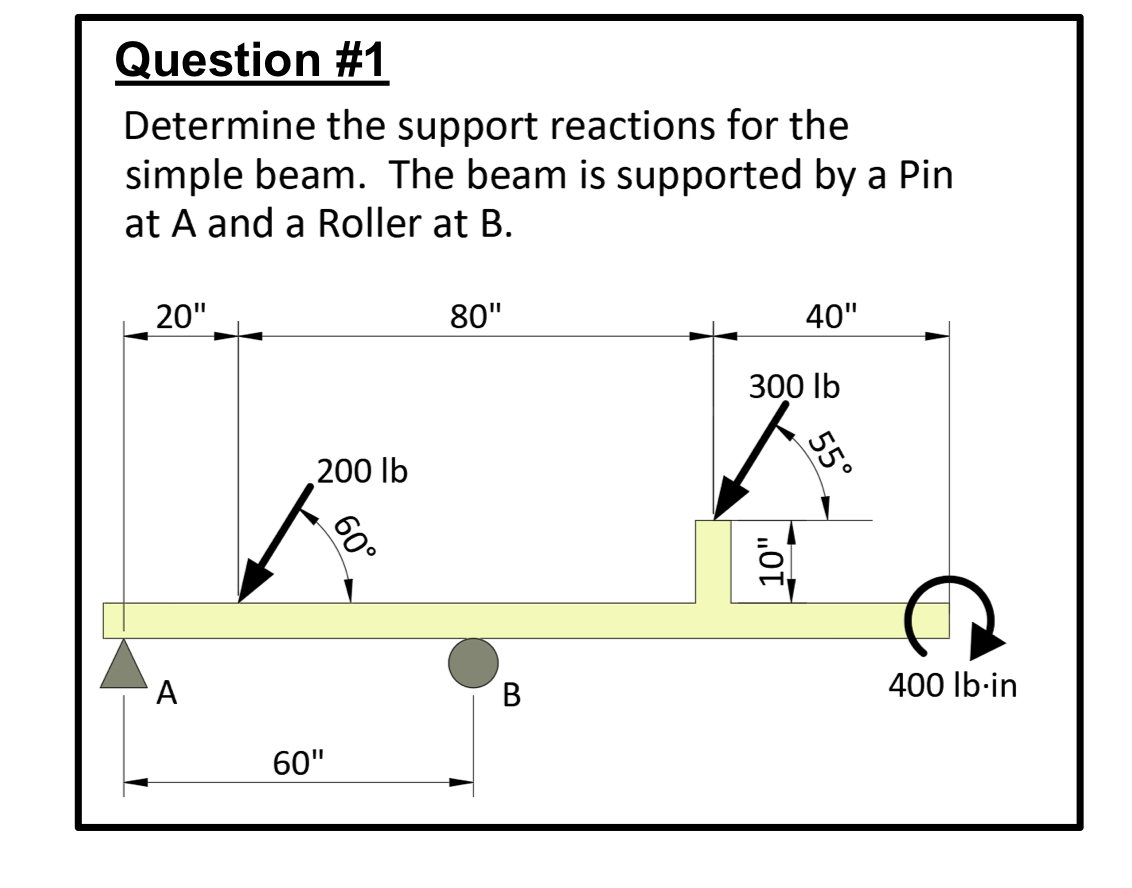

Determine the support reactions for the simple beam. The beam is supported by a Pin at \( A \) and a Roller at B.
Question \ # 1 Determine the support reactions

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

1. Determine the support reactions at pin A and roller B. Neglect the thickness of the beam

Q:

Question 1 [22 marks] Figure Q1 depicts a horizontal beam that is simply supported at points B and D, loaded with an evenly distributed load of 2 kN/m along its whole length, and two concentrated...

Q:

Problem 2 ( 3 0 points ) Given: Given: The beam below is supported by a pin at A and a roller at B . Find: A . Draw the free body diagram of the beam, including resultant forces and location for each...

Q:

A distributed load is applied to the beam as shown. The beam is supported by a pin connection at A and a roller at B. a) Determine the support reactions at A and B if M = 100 lb-ft. b) What value of...

Q:

A beam supports both a uniform distributed load and a concentrated force, as shown in the figure below. The uniform distributed load has a magnitude and extends from to to the right of point A . The...

Q:

A rigid beam ABC is supported at C by a pin support, and at A and B by timber struts AD and BE which are in turn supported by pin supports at D and E respectively (Figure 1). The struts AD and BE are...

Q:

ROUND TO 4 DECIMAL PLACES OR YOU ARE NOT ANSWERING THE QUESTION The crane is supported by a pin at point A and a roller at point B. A winch at point C is used to raise and lower loads. The pulleys...

Q:

QUESTION 2 2 . 1 Figure 2 shows a beam subjected to loads. A distributed load of 4 k N m , a couple moment of 6 kN and a point load of 3 kN . The beam is supported at A ( pin support ) and B ( roller...

Q:

The beam is supported by a pin at \(A\), a roller at \(B\), and a post having a diameter of \(50 \mathrm{~mm}\) at \(C\). Determine the support reactions at \(A, B\), and \(C\). The post and the beam...

Q:

For the simply supported beam below, ( a ) determine the support reactions at pin support A and roller support C ( 1 0 points ) ; ( b ) draw the shear and moment diagrams for the beam. The 5 0 k N *...
