Question: Question 1 . Give the 16-bit op code for the next instructions of the Basic Computer Architecture, by filling the next tablei? Instruction DescriptionBinary Op

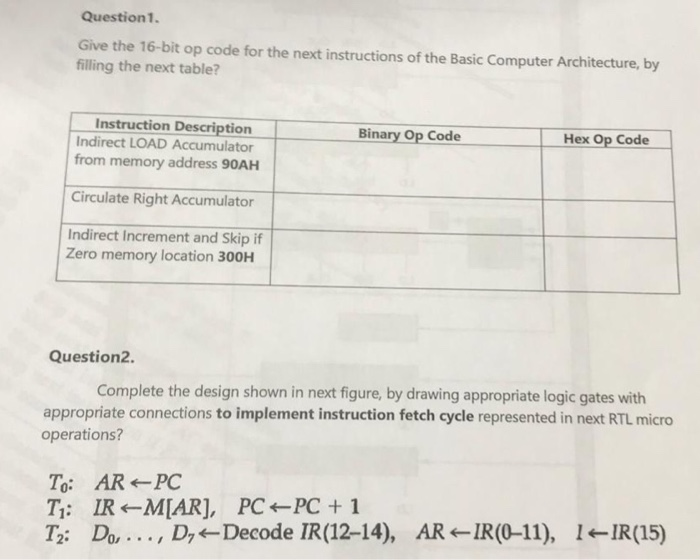

Question 1 . Give the 16-bit op code for the next instructions of the Basic Computer Architecture, by filling the next tablei? Instruction DescriptionBinary Op Code Indirect LOAD Accumulator Hex Op Code from memory address 90AH Circulate Right Accumulator Indirect Increment and Skip if Zero memory location 300H Question2. Complete the design shown in next figure, by drawing appropriate logic gates with appropriate connections to implement instruction fetch cycle represented in next RTL micro operations? To: AR T2: D., PC , D,Decode IR(12-14), ARlR(0-11), lIR(15)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
