Question: Question # 1 : I need help plz solve it with detalis ( show me the steps ) Electric circuit Consider the circuit given in

Question # 1: I need help plz solve it with detalis (show me the steps) Electric circuit

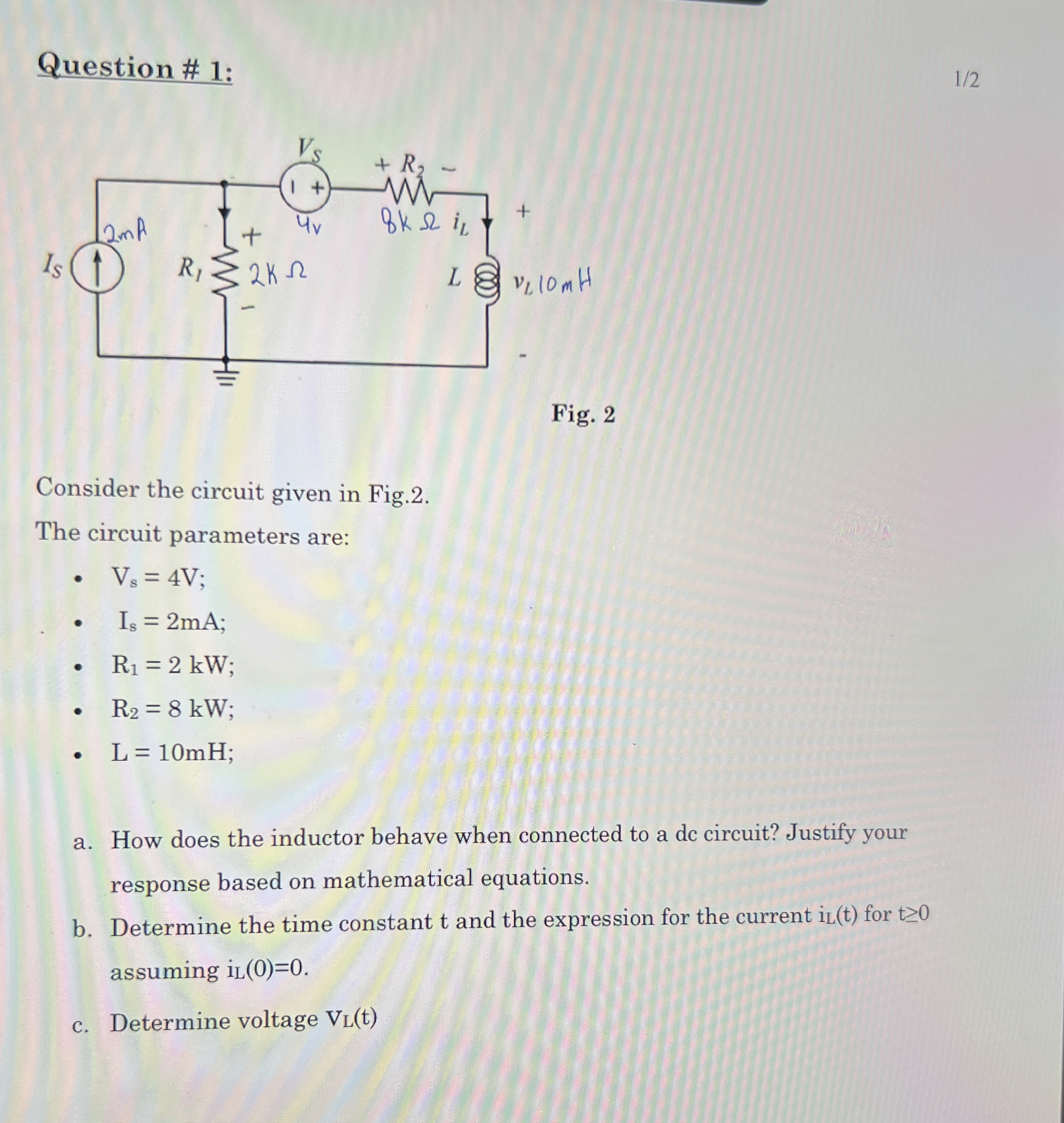

Consider the circuit given in Fig.2.
The circuit parameters are:
Vs=4V;
Is=2mA;
R1=2kW;
R2=8kW;
L=10mH;
a. How does the inductor behave when connected to a dc circuit? Justify your response based on mathematical equations.
b. Determine the time constant t and the expression for the current iL(t) for t0 assuming iL(0)=0.
c. Determine voltage VL(t)
Question # 1 : I need help plz solve it with

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
