Question: QUESTION 1 : INTEGRATION METHOD ( SDS ) Determine the equation of the elastic curve for the beam using the x 1 and x 2

QUESTION 1: INTEGRATION METHOD (SDS)

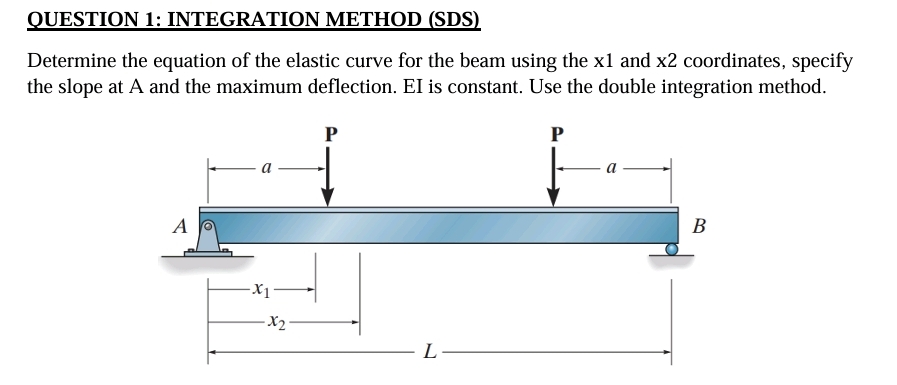

Determine the equation of the elastic curve for the beam using the x 1 and x 2 coordinates, specify the slope at A and the maximum deflection. EI is constant. Use the double integration method.
QUESTION 1 : INTEGRATION METHOD ( SDS ) Determine

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

Determine the equation of the elastic curve for the beam using the x 1 and x 2 coordinates, specify the slope and deflection at B . EI is constant. Use the double integration method.
