Question: Question 1 Referring to Figure 1 below, determine the maximum force P that can be applied to the rigid handle (DAB) so that the A-36

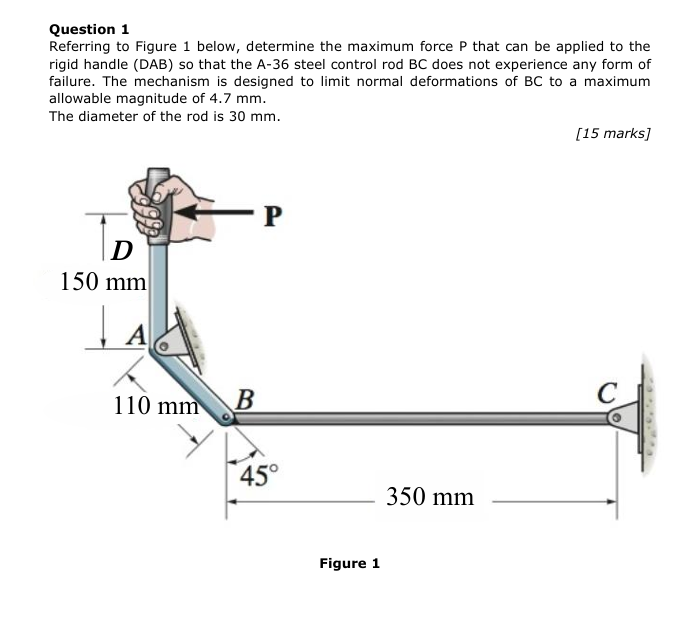

Question 1 Referring to Figure 1 below, determine the maximum force P that can be applied to the rigid handle (DAB) so that the A-36 steel control rod BC does not experience any form of failure. The mechanism is designed to limit normal deformations of BC to a maximum allowable magnitude of 4.7 mm. The diameter of the rod is 30 mm. [15 marks] 350 mm Figure 1

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Accounting Questions!

13-19. Determine the maximum force P that can be applied to the handle so that the A-36 steel control rod BC does not buckle. The rod has a diameter of 25 mm. T 350 mm P 250 mm 800 mm Prob. 13-19
